Aerolight Classic Lightweight Portable Access Ramp

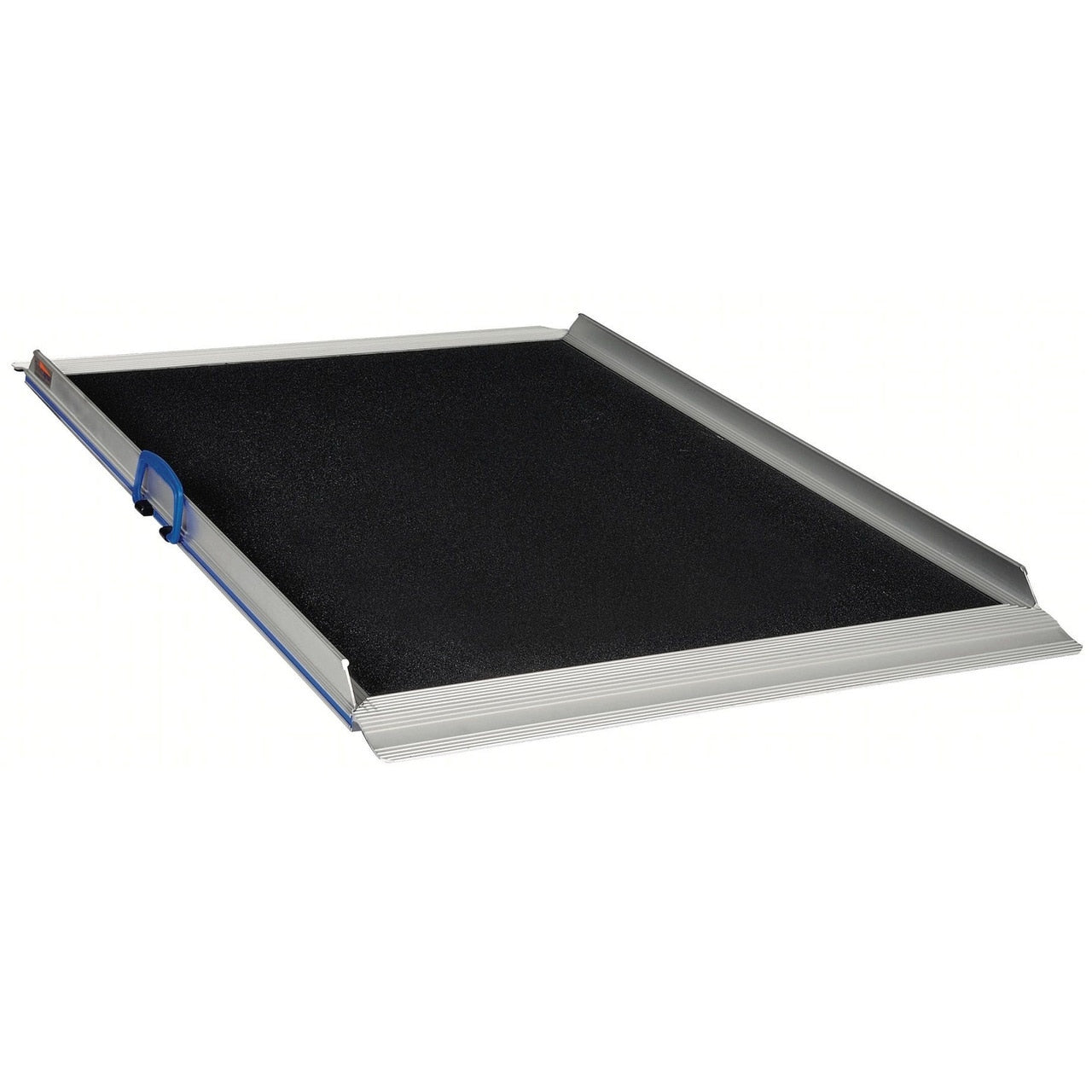

The Aerolight Classic - Lightweight Portable Access Ramp

SKU: GLEBE2012AMAUK3413

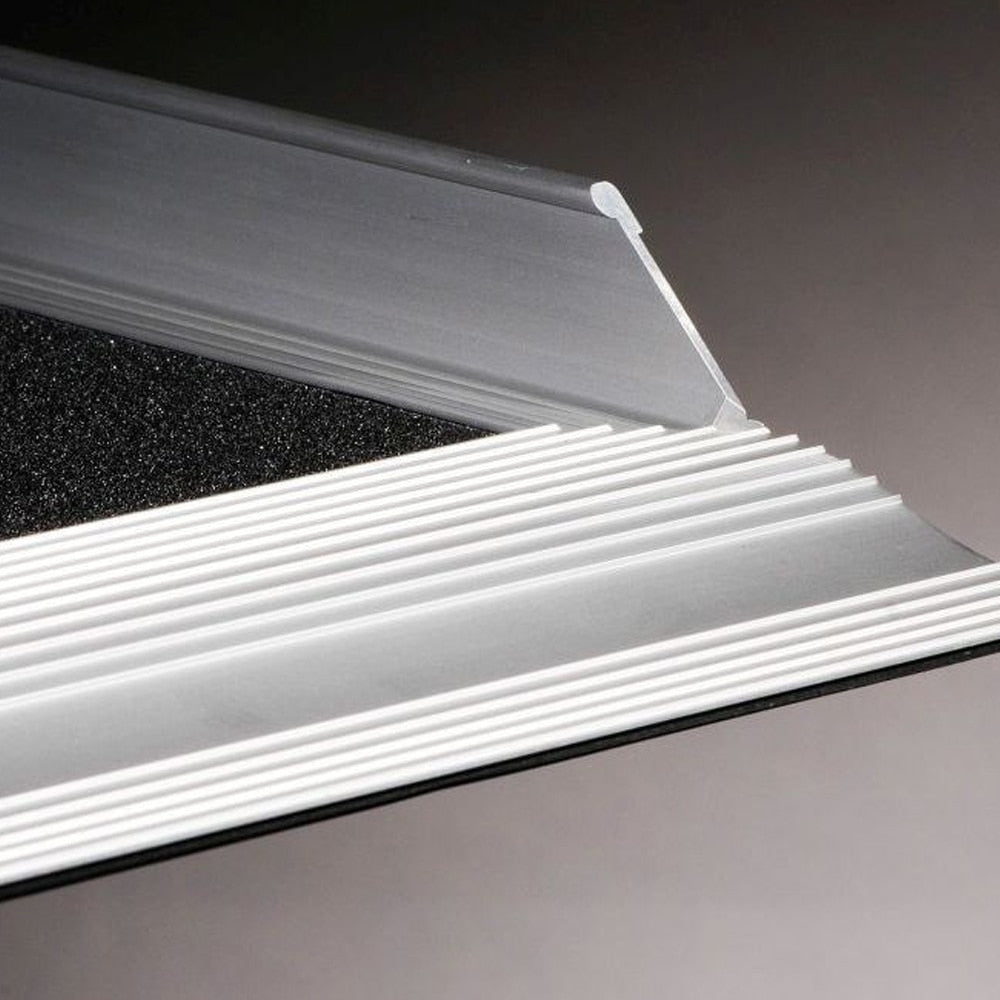

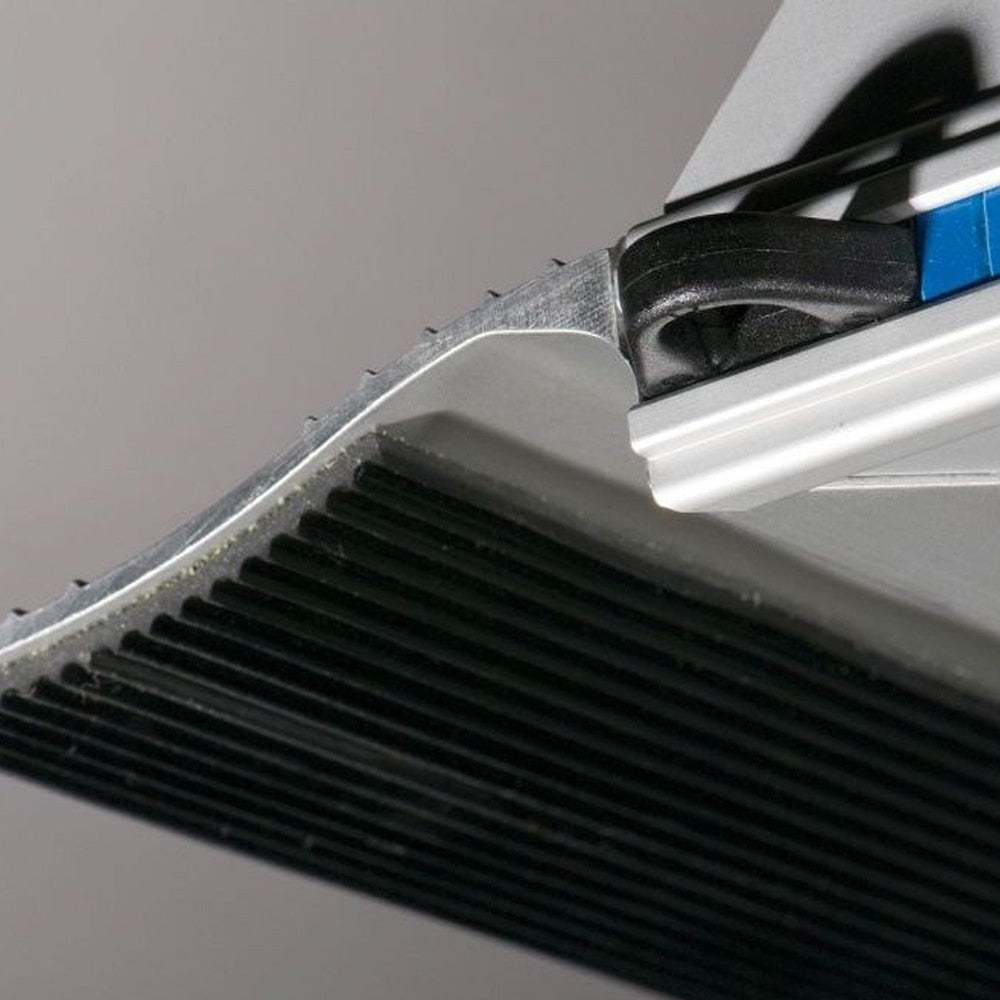

The Aerolight Classic is a non-folding ramp with premium aesthetics and standout features such as rubberised end grips (to prevent threshold damage) and a sandpaper-like grip surface. It is an extremely cost-effective option available in multiple lengths when the convenience on a folding ramp may not be required. All lengths are 76cm (30inches) wide.
£216.99
£216.99

With VAT Relief

    The Aerolight Classic is a non-folding ramp with premium aesthetics and standout features such as rubberised end grips (to prevent threshold damage) and a sandpaper-like grip surface. It is an extremely cost-effective option available in multiple lengths when the convenience on a folding ramp may not be required. All lengths are 76cm (30inches) wide.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4€?) 60cm (2€™) 80cm (2€™ 8€?) 120cm (4€™)
15cm (6€?) 90cm (3€™) 120cm (4€™) 180cm (6€™)
20cm (8€?) 120cm (4€™) 160cm (5€™ 4€?) 240cm (8€™)
25cm ( 10€?) 150cm (5€™) 200cm (6€™ 8€?) 300cm (10€™)
30cm (1€™) 180cm (6€™) 240cm (8€™) 360cm (12€™)
45cm (1€™ 6€?) 270cm (9€™) 360cm (12€™) 540cm (18€™)
60cm (2€™) 360cm (12€™) 480cm (16€™) 720cm (24€™)
Aerospace honeycomb aluminium technology ensures incredible strength, and light weight.
A great lightweight portable solution for thresholds, kerbs and steps.
Well-suited to public access.
Simple to deploy.
Weather-resistant.
Anti-slip, sandpaper-like premium black grip surface

Aerolight Classic Sizes

Code Length Width* Capacity
kg (st)
Weight
kg (lbs)
AC6 60cm (2ft) 76cm (30ins) 350 (55) 4 (9)
AC9 90cm (3ft) 76cm (30ins) 350 (55) 6 (13)
AC12 120cm (4ft) 76cm (30ins) 350 (55) 8 (18)
AC15 150cm (5ft) 76cm (30ins) 350 (55) 10 (22)

Downloads

pdf iconDownload the ramp assessment guide here
