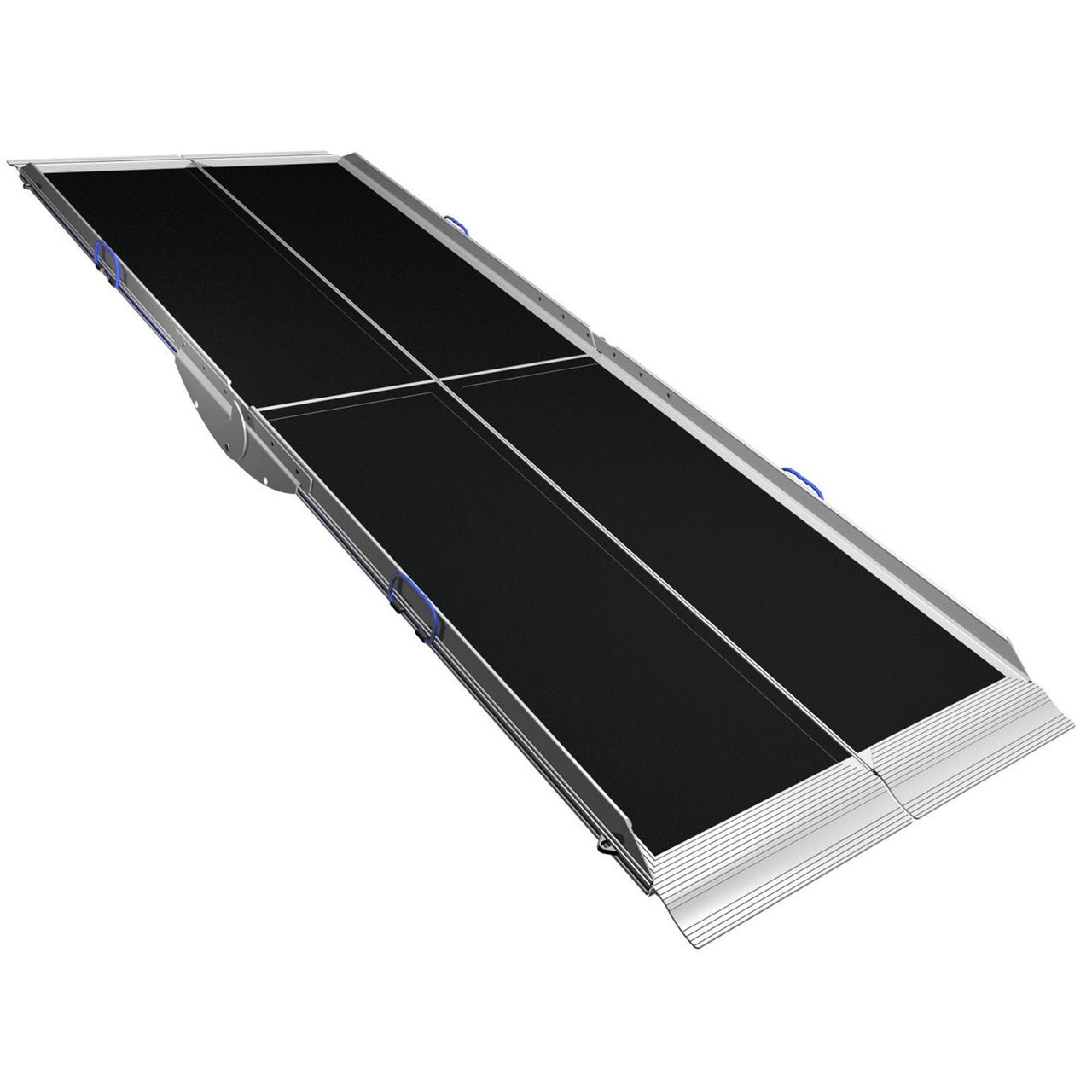

Aerolight Lifestyle Lightweight Portable Vehicle Access Ramp

The Aerolight Lifestyle - Lightweight Portable Vehicle Access Ramp

SKU: GLEBE2012AMAUK3418
The Aerolight Lifestyle is established as one of the most innovative full-width ramps available.
£592.99
£592.99

With VAT Relief

    The Aerolight Lifestyle is established as one of the most innovative full-width ramps available.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft) 200cm (6ft 8") 300cm (10ft)
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft™)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)
Aerospace honeycomb aluminium technology ensures incredible strength, and light weight.
A great lightweight portable solution for thresholds, kerbs and steps.
Well-suited to public access.
Simple to deploy.
Weather-resistant.

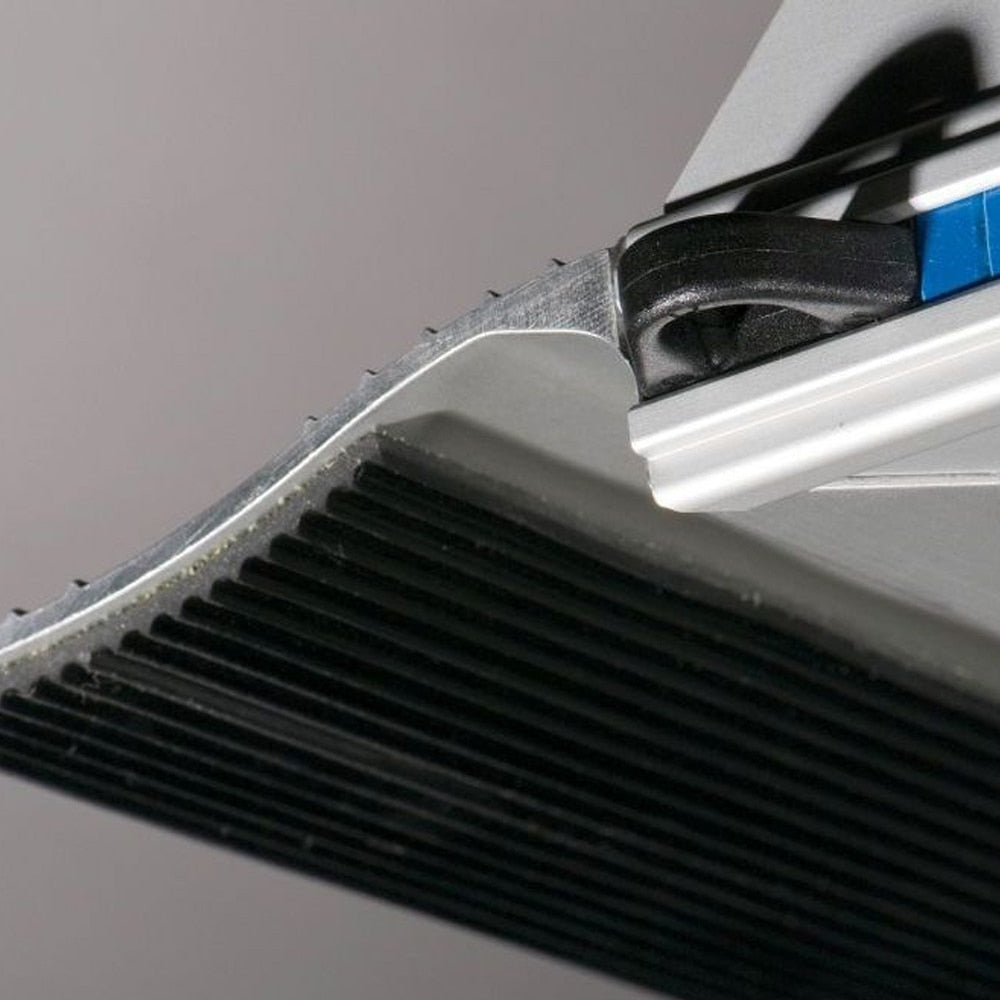

Anti-slip, sandpaper-like premium black grip surface

Aerolight Lifestyle Size Guide

Code Length Width Capacity
kg (st)
Weight
kg (lbs)
each
half
AL18 180cm (6ft) 74cm (29ins) 350 (55) 8 (18)
AL21 210cm (7ft) 74cm (29ins) 300 (47) 9 (20)
AL24 240cm (8ft) 74cm (29ins) 250 (39) 10 (22)
AL27 270cm (9ft) 74cm (29ins) 250 (39) 11 (24)

Downloads

pdf iconDownload the ramp assessment guide here

Specifications
