Aerolight Xtra Lightweight Portable Folding Access Ramp

The Aerolight Xtra - Lightweight Portable Folding Access Ramp

SKU: GLEBE2012AMAUK3424
The Aerolight Xtra is a folding ramp is an extremely cost-effective option. It is available in multiple lengths and is a result of years of ramp manufacturing expertise. Quick and easy to deploy, the Xtra is an all-round winner in real life situations.
£226.99
£226.99

With VAT Relief

    The Aerolight Xtra is a folding ramp is an extremely cost-effective option. It is available in multiple lengths and is a result of years of ramp manufacturing expertise. Quick and easy to deploy, the Xtra is an all-round winner in real life situations.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft) 200cm (6ft 8") 300cm (10ft)
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)
Aerospace honeycomb aluminium technology ensures incredible strength, and light weight.
A great lightweight portable solution for thresholds, kerbs and steps.
Well-suited to public access.
Simple to deploy.
Weather-resistant.

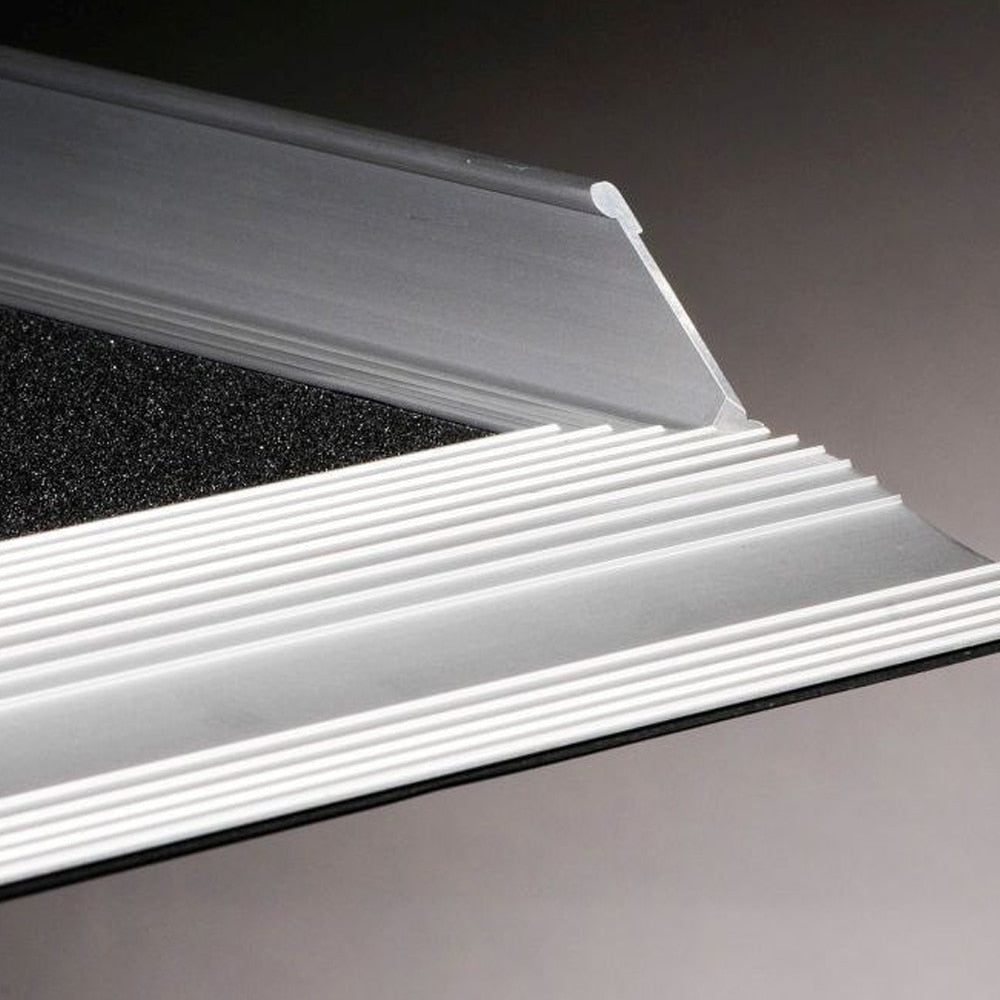

Anti-slip, sandpaper-like premium black grip surface

Aerolight Xtra Sizes

Code Length Width* Capacity
kg (st)
Weight
kg (lbs)
AX6 60cm (2ft) 76cm (30ins) 350 (55) 5 (11)
AX9 90cm (3ft) 76cm (30ins) 350 (55) 7 (15)
AX12 120cm (4ft) 76cm (30ins) 350 (55) 9 (20)
AX15 150cm (5ft) 76cm (30ins) 350 (55) 11 (24)
AX18 180cm (6ft) 76cm (30ins) 350 (55) 13 (29)
AX21 210cm (7ft) 76cm (30ins) 300 (47) 15 (33)
AX24 240cm (8ft) 76cm (30ins) 250 (55) 17 (37)

Downloads

Download the ramp assessment guide here

Specifications
