Build-A-Slope Modular Adjustable Ramp Kit

Build-A-Slope Modular Adjustable Ramp Kit

SKU: ENABLEa16bas1

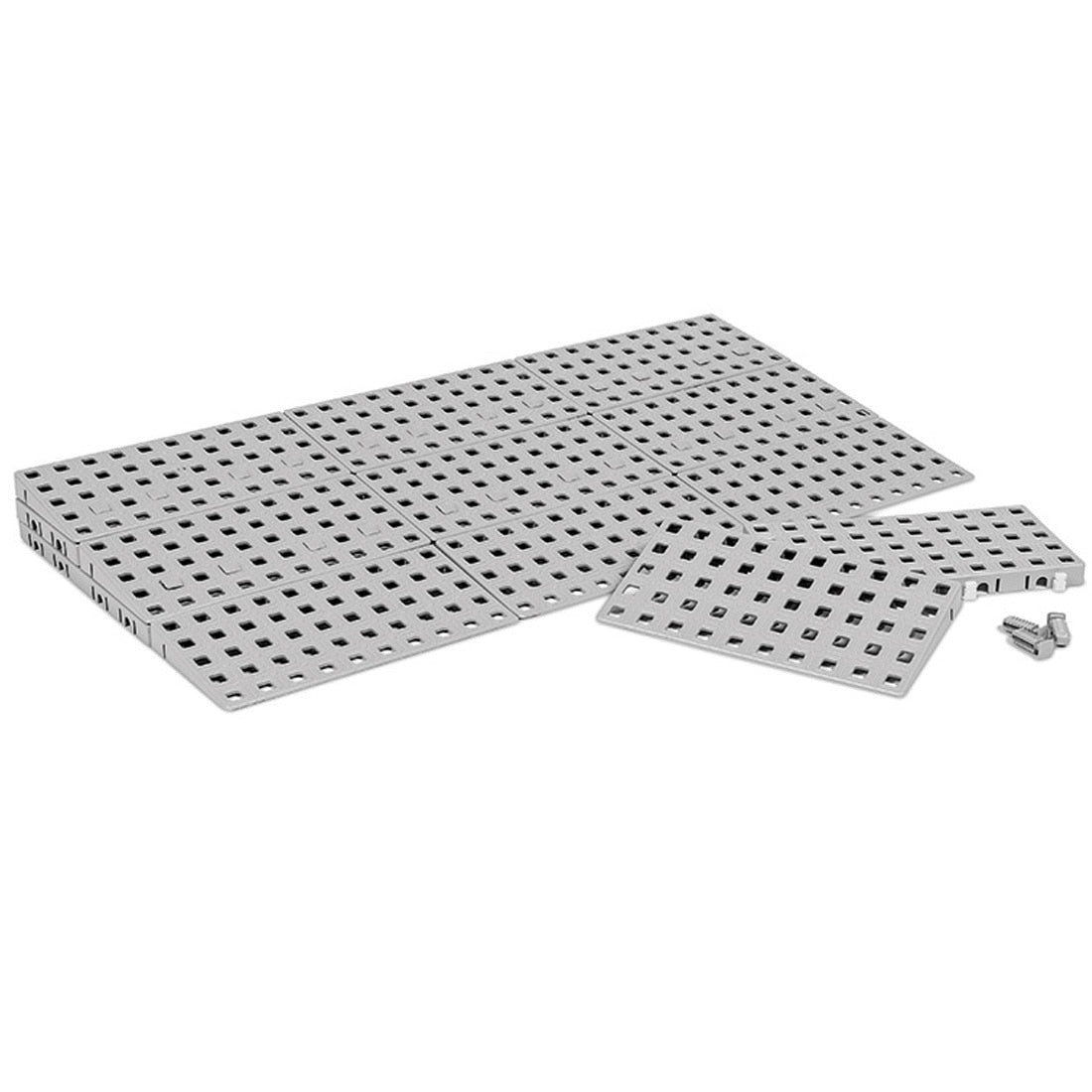

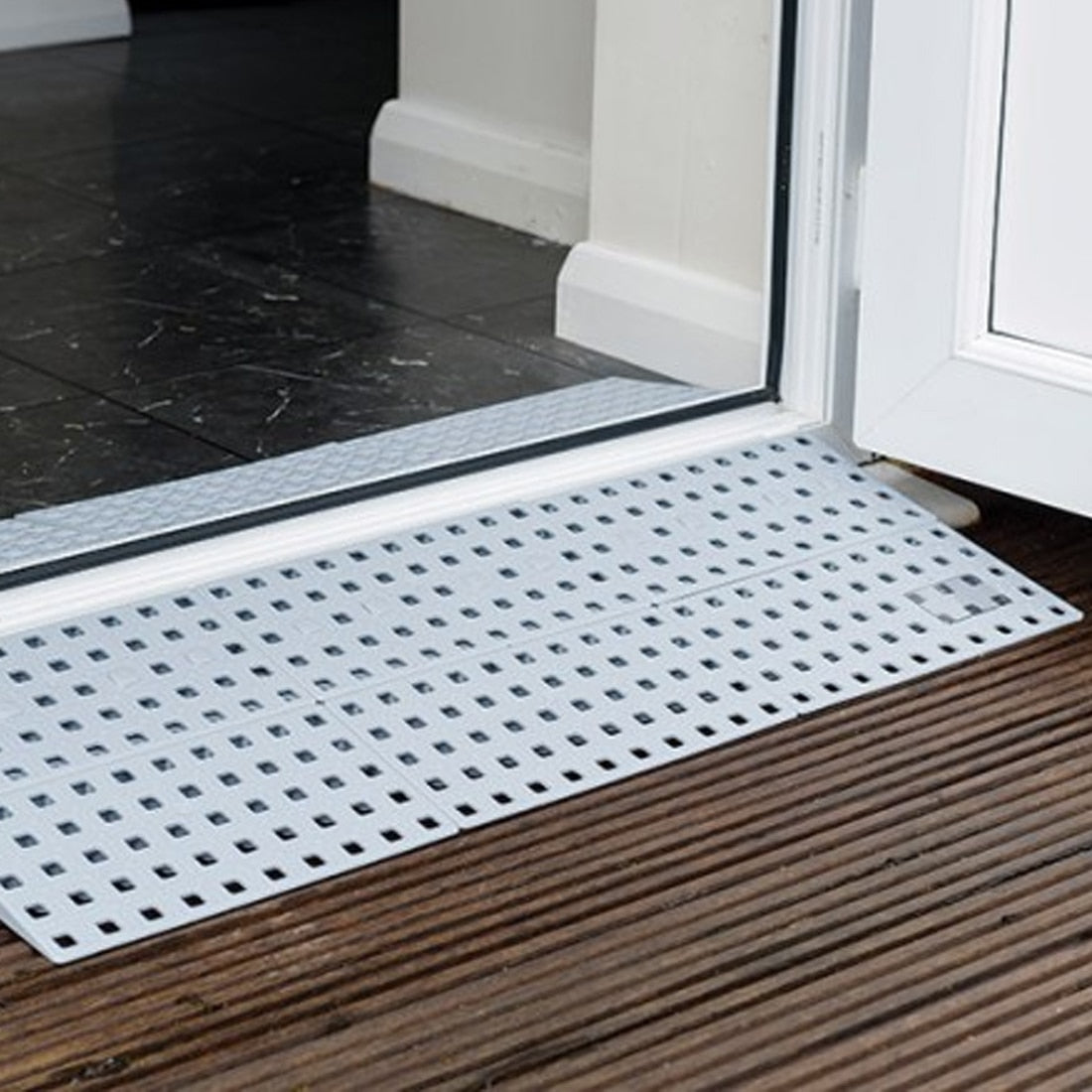

These modular kits make it possible to build a tailor made ramp for your threshold.
£108.99
£108.99

With VAT Relief

    These modular kits make it possible to build a tailor made ramp for your threshold.

These modular kits make it possible to build a tailor made ramp for your threshold.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4€?) 60cm (2€™) 80cm (2€™ 8€?) 120cm (4€™)
15cm (6€?) 90cm (3€™) 120cm (4€™) 180cm (6€™)
20cm (8€?) 120cm (4€™) 160cm (5€™ 4€?) 240cm (8€™)
25cm ( 10€?) 150cm (5€™) 200cm (6€™ 8€?) 300cm (10€™)
30cm (1€™) 180cm (6€™) 240cm (8€™) 360cm (12€™)
45cm (1€™ 6€?) 270cm (9€™) 360cm (12€™) 540cm (18€™)
60cm (2€™) 360cm (12€™) 480cm (16€™) 720cm (24€™)
tick iconEasily configured and adapted for any application
tick iconTotally weatherproof
tick iconQuick to install
tick iconChoose from 4 popular kits
tick icon100% compatible with other brands

Build a Slope Size Guide

Code Max.
Height
Length Width Capacity
kg (st)
Weight
kg (lbs)
BSK1 4cm
(1.6ins)
25cm
(10ins)
75cm
(29.5ins)
400
(63)
0.85
(1.9)
BSK2 7.5cm
(3ins)
50cm
(20ins)
75cm
(29.5ins)
400
(63)
3.4
(7.5)
BSK3 11cm
(4.3ins)
75cm
(30ins)
75cm
(29.5ins)
400
(63)
7.6
(16.8)
BSK4 15cm
(5.9ins)
100cm
(39ins)
75cm
(29.5ins)
400
(63)
13.5
(29.8)

Downloads

pdf iconDownload the ramp assessment guide here

Specifications
