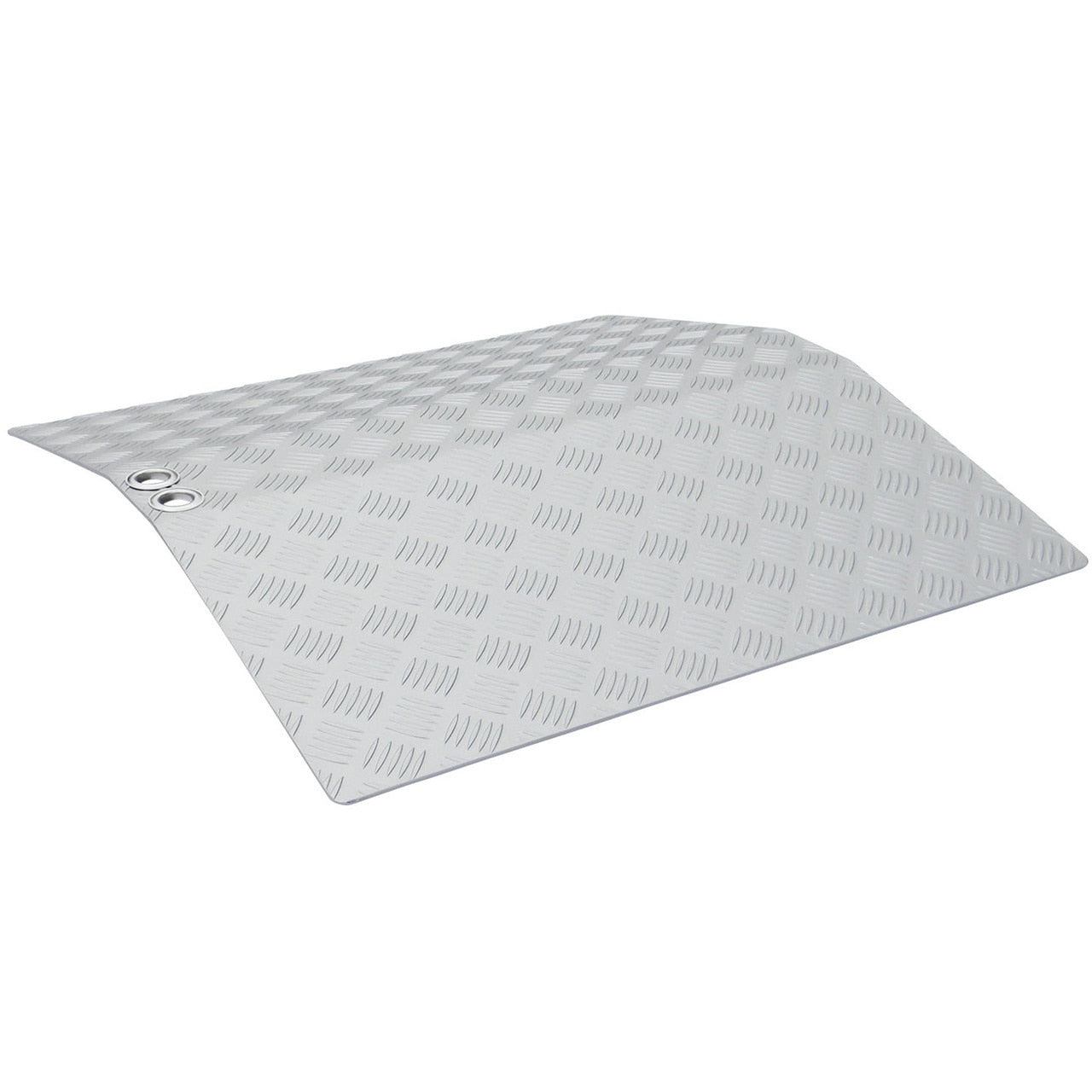

Doorline Bridge Lightweight Ramp for Thresholds

The Doorline Bridge - Lightweight Ramp for Thresholds

SKU: GLEBE2012AMAUK3454
Highly presentable and very practical, these bridge ramps are perfect for overcoming awkward thresholds - internal or external. Choose from 4 useful sizes.
£124.99
£124.99

With VAT Relief

    Highly presentable and very practical, these bridge ramps are perfect for overcoming awkward thresholds - internal or external. Choose from 4 useful sizes.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft 200cm (6ft 8") 300cm (10ft)
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)
Unmatched level of finish to prevent stains and corrosion, and provide years of use

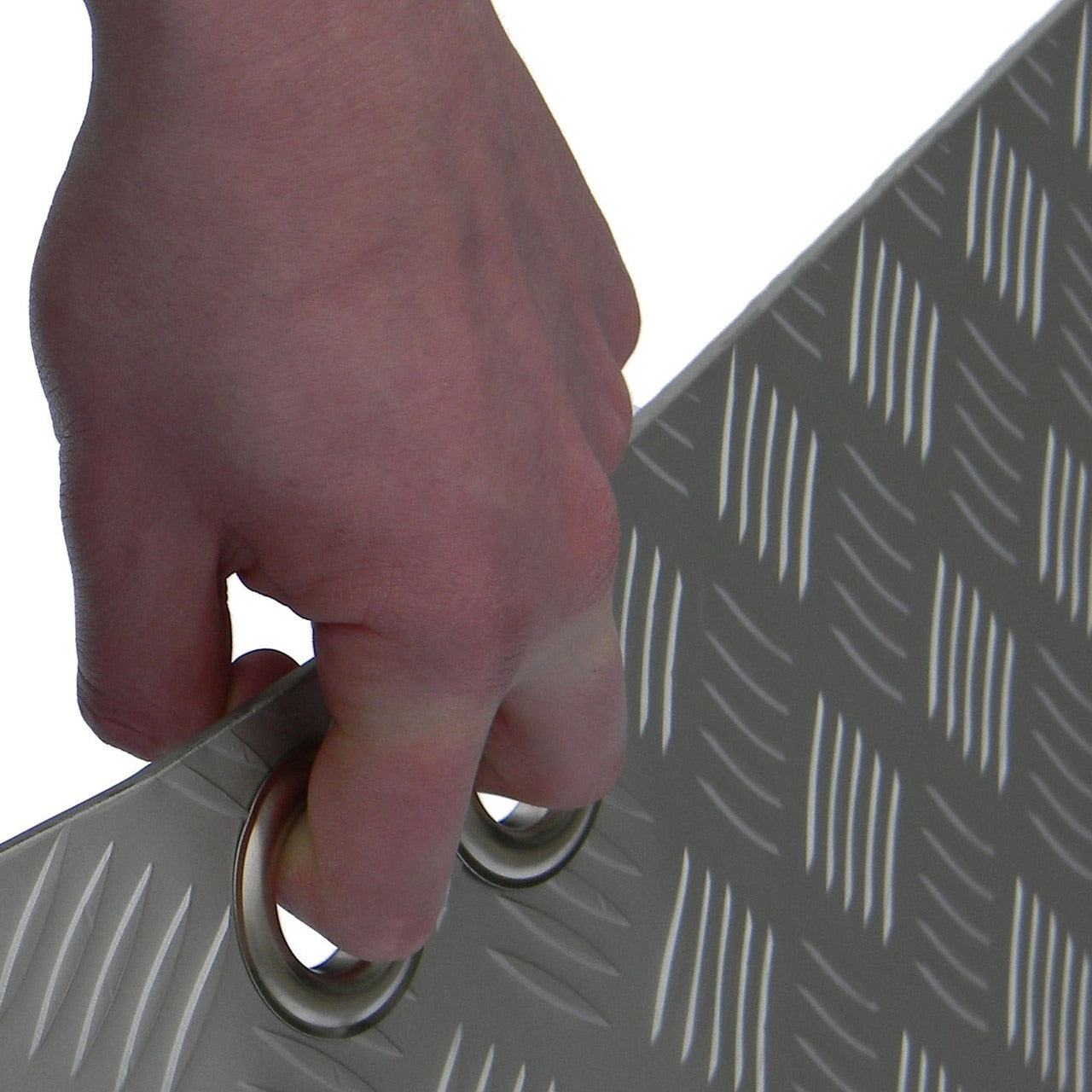

Unique comfortable carrying
Rubber strips to prevent slipping and protect floors
Excellent grip surface
Extremely lightweight and very quick to deploy

Doorline Bridge Size Guide

Code Height Length Width Capacity kg (st)* Weight kg (lbs)
DB4 4cm (1.6ins) 56cm (22ins) 70cm (28ins) 300 (47) 3.3 (7)
DB6 6cm (2.4ins) 60cm (23ins) 70cm (28ins) 300 (47) 4 (9)
DB8 8cm (3.1ins) 81cm (32ins) 70cm (28ins) 300 (47) 6.8 (15)
DB10 10cm (3.9ins) 100cm (39ins) 70cm (28ins) 300 (47) 8.5 (19)
*Capacity assumes ramp rests on threshold

Downloads

pdf iconDownload the ramp assessment guide here

Specifications
