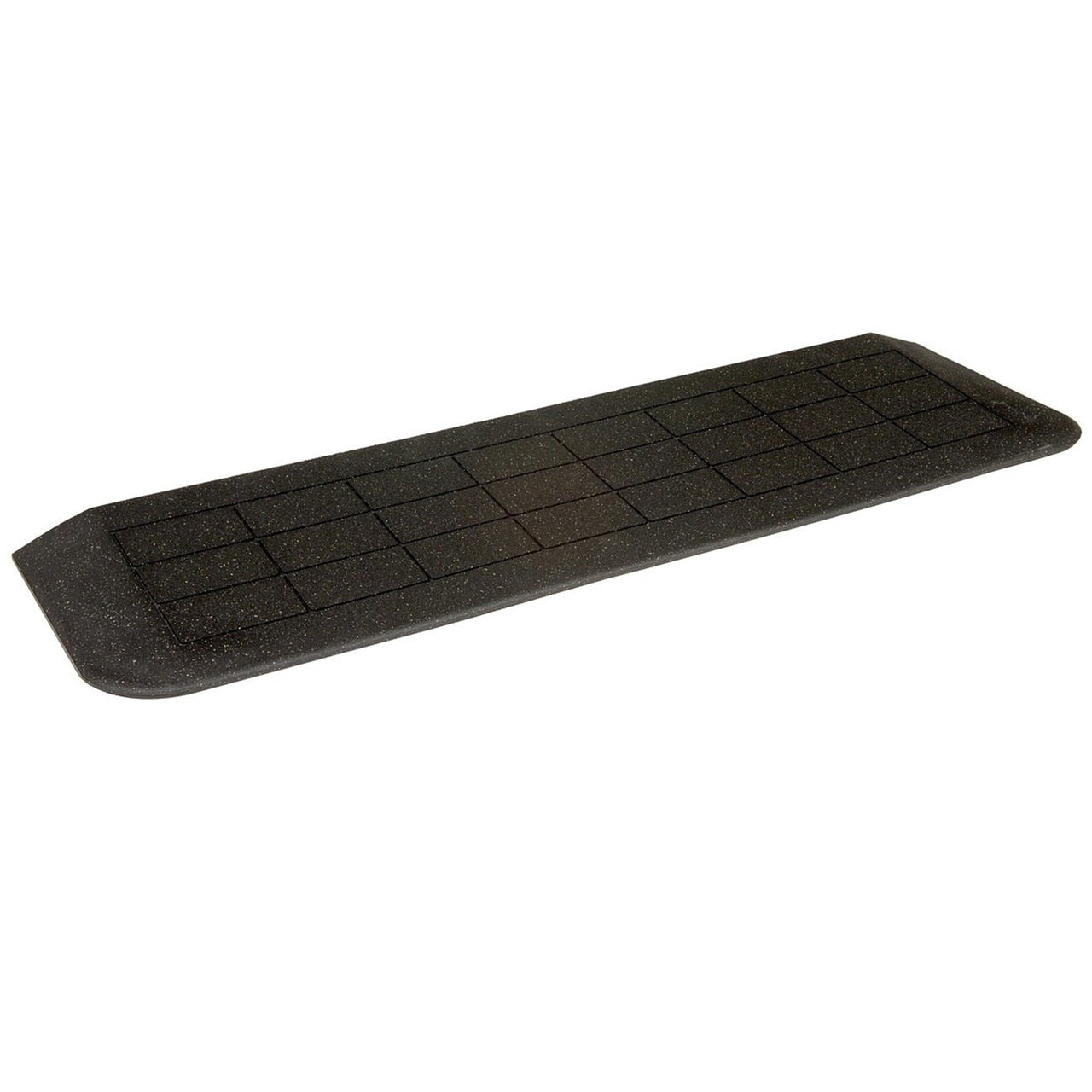

Doorline Neatedge 90cm Rubber Trimmable Ramp

The Doorline Neatedge 90 - 90cm Rubber Trimmable Ramp

SKU: GLEBE2012AMAUK3444
Neatedge rubber ramps are unobtrusive, strong and versatile. This range is specially produced to a very practical 90cm width. And can be easily trimmed, cut or joined for any application. Excellent value for money for single door width ramps.
£113.99
£113.99

With VAT Relief

    Neatedge rubber ramps are unobtrusive, strong and versatile. This range is specially produced to a very practical 90cm width. And can be easily trimmed, cut or joined for any application. Excellent value for money for single door width ramps.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft 200cm (6ft 8") 300cm (10ft
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)
Extremely versatile - can be used in a huge number of situations
Chamfered edges allow easy access from any angle
Soft surface great for use in schools and care and nursing comes
Ideal for showers or wet rooms
Incredible weight capacity - well suited for industrial use

Doorline Neatedge 90 Size Guide

Code Height
cm (ins)
Length
cm (ins)
Width
cm (ins)
Capacity
kg (st)
Weight
kg (lbs)
DN15-9 1.5 (0.6) 12 (4.5) 90 (35) 500 (79) 1.4 (3.1)
DN25-9 2.5 (1) 20 (8) 90 (35) 500 (79) 3.3 (7.3)
DN50-9 5 (2) 40 (16) 90 (35) 500 (79) 12 (26.5)
DN75-9 7.5 (3) 60 (24) 90 (35) 500 (79) 26 (57.3)

Downloads

pdf iconDownload the ramp assessment guide here
