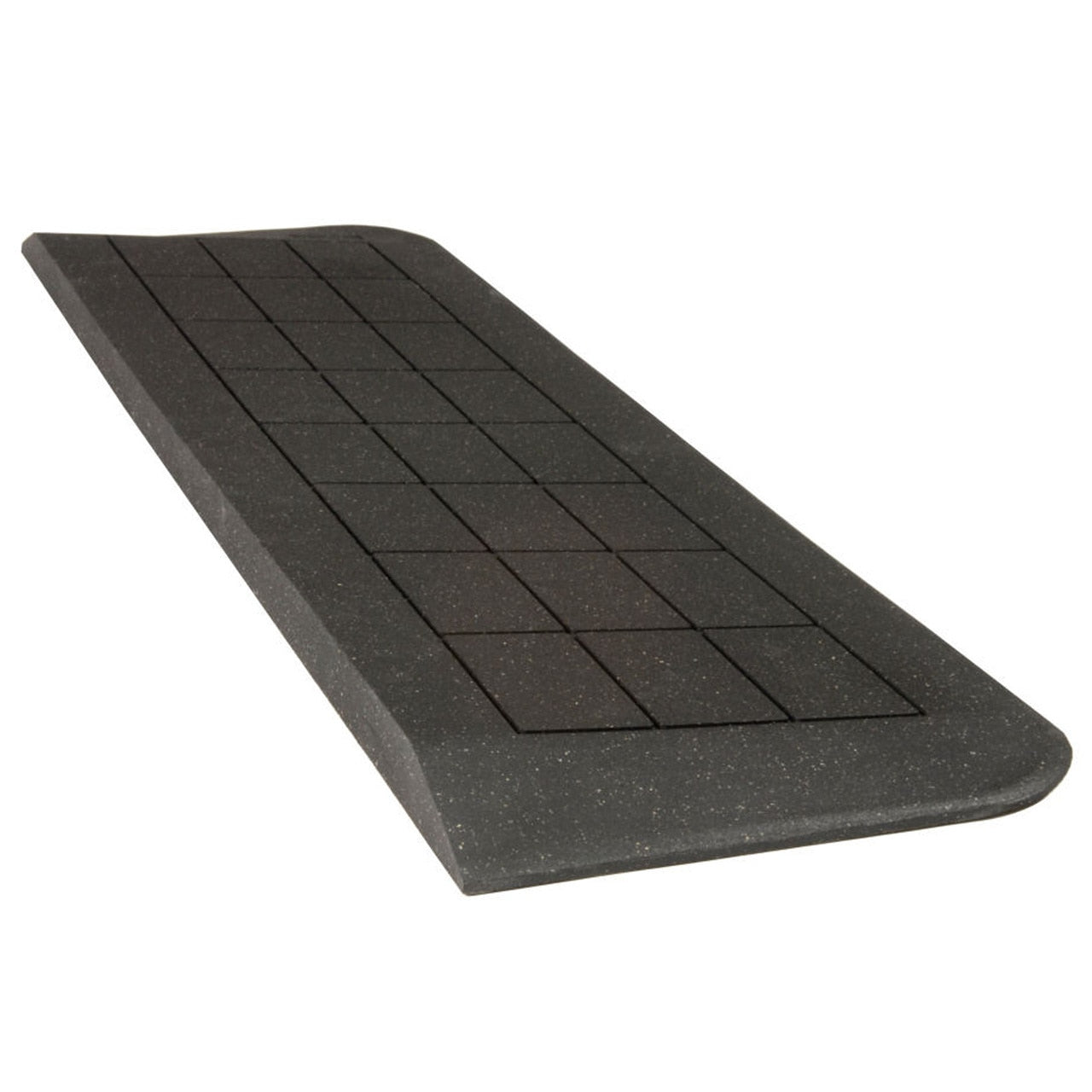

Doorline Neatedge Ramp Rubber Trimmable Ramp

Doorline Neatedge Trimmable Rubber Ramp

SKU: GLEBE2012AMAUK3432

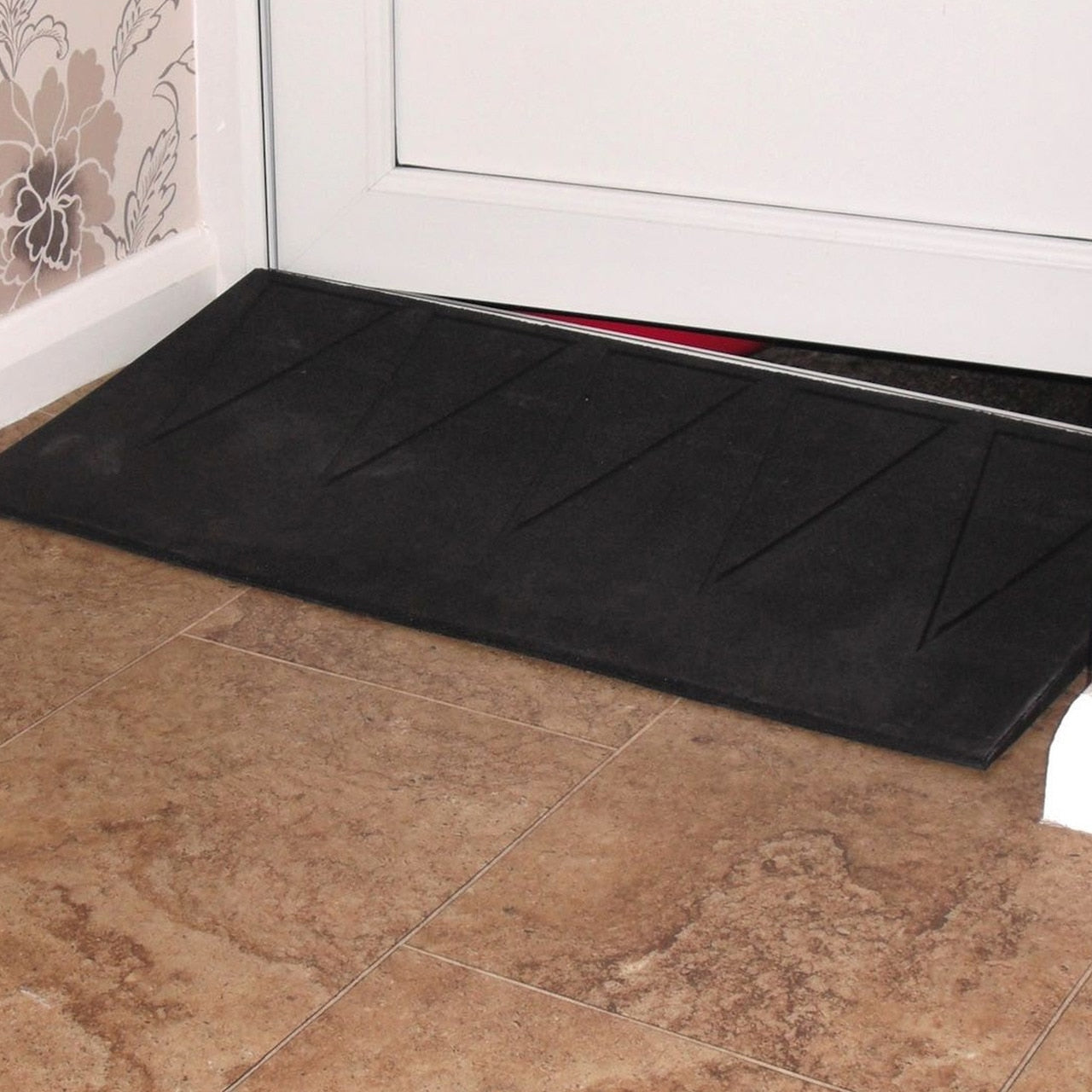

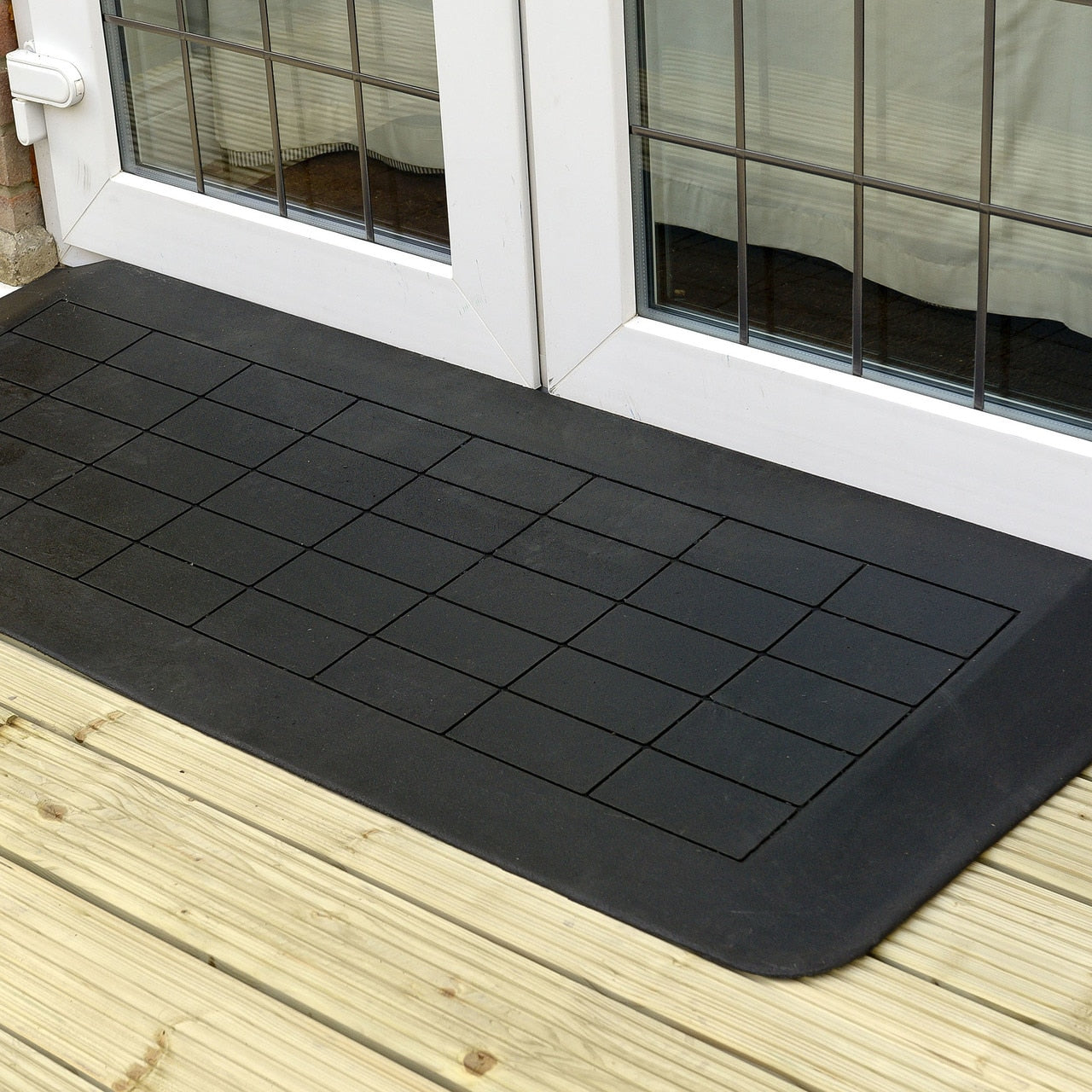

The massive loading capacity of the Doorline Neatedge wheelchair ramp lends itself to numerous uses. One of the major benefits of the Doorline Neatedge ramps is that they can be cut to size, both in terms of adjusting the width and also reducing the height to suit and can be just placed into position for temporary us or can be glued down for permanent use.
£112.99
£112.99

With VAT Relief

    The massive loading capacity of the Doorline Neatedge wheelchair ramp lends itself to numerous uses. One of the major benefits of the Doorline Neatedge ramps is that they can be cut to size, both in terms of adjusting the width and also reducing the height to suit and can be just placed into position for temporary us or can be glued down for permanent use.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft) 200cm (6ft 8") 300cm (10ft)
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)
100% recycled from vehicle tyres
Can be easily trimmed cut or joined to fit location requirements
Huge weight capacity - well suited for industrial use
Soft surface great for use in schools, care homes and nursing homes
Chamfered edges allow easy access from any angle (Except DN6)
Chamfered edges allow easy access from any angle (Except DN6)

Doorline Neatedge Size Guide

Code Height Length Width Capacity
kg (st)
Weight
kg (lbs)
Chamfered
edges (y/n)
DN2 2.2cm (0.9ins) 20cm (8ins) 107cm (42ins) 500 (79) 3.2 (7) Y
DN3 3.2cm (1.3ins) 31cm (12ins) 107cm (42ins) 500 (79) 7.7 (17) Y
DN4 4.5cm (1.8ins) 46cm (18ins) 127cm (50ins) 500 (79) 18.2 (40) Y
DN5 5.1cm (2.0ins) 53cm (21ins) 152cm (60ins) 500 (79) 34.1 (75) Y
DN6 5.7cm (2.3ins) 76cm (30ins) 76cm (30ins) 500 (79) 20 (44) N

Downloads

pdf iconDownload the ramp assessment guide here
