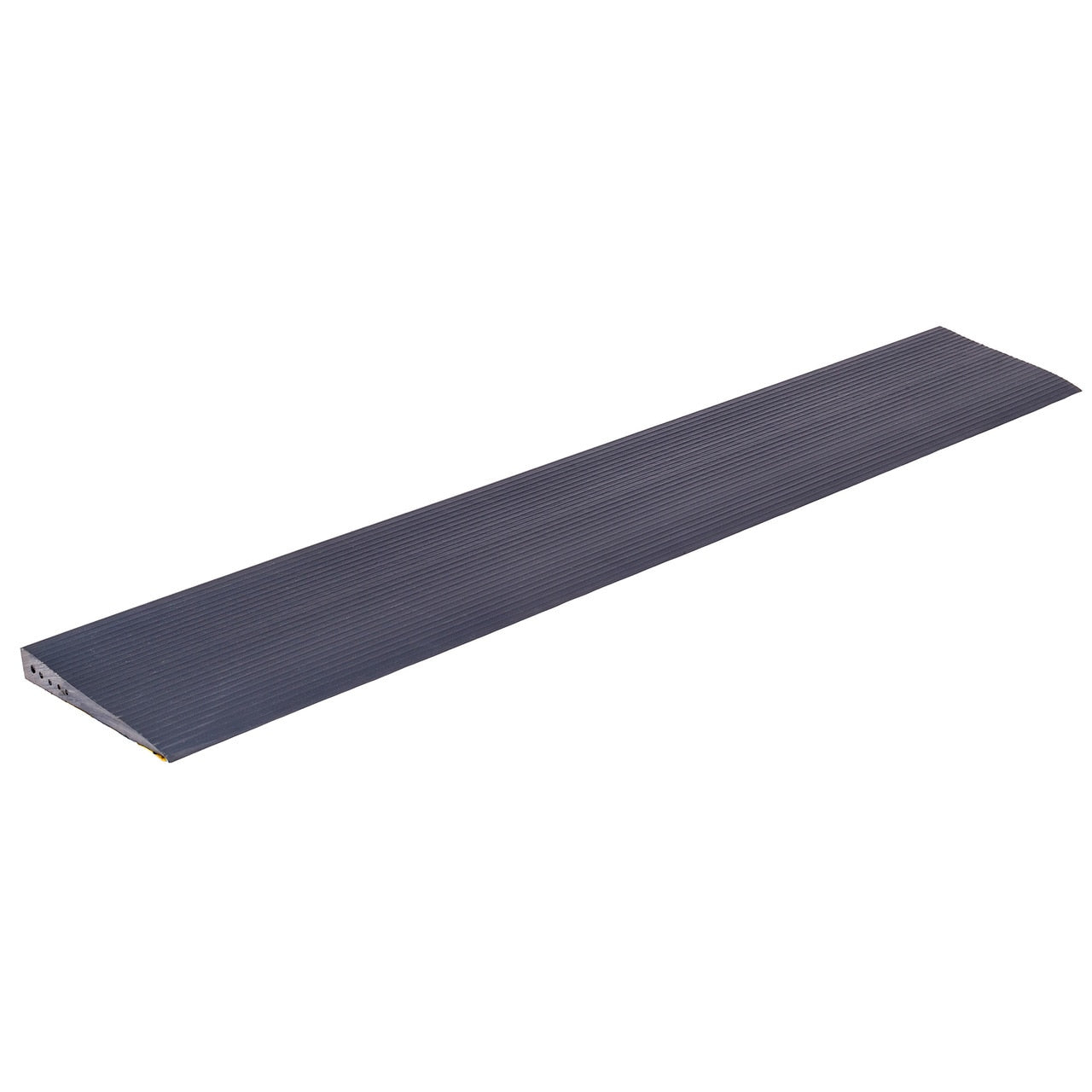

Doorline Neatslope Adhesive Threshold Ramp

Doorline Neatslope Adhesive Threshold Ramp

SKU: ENABLEa2016dns1

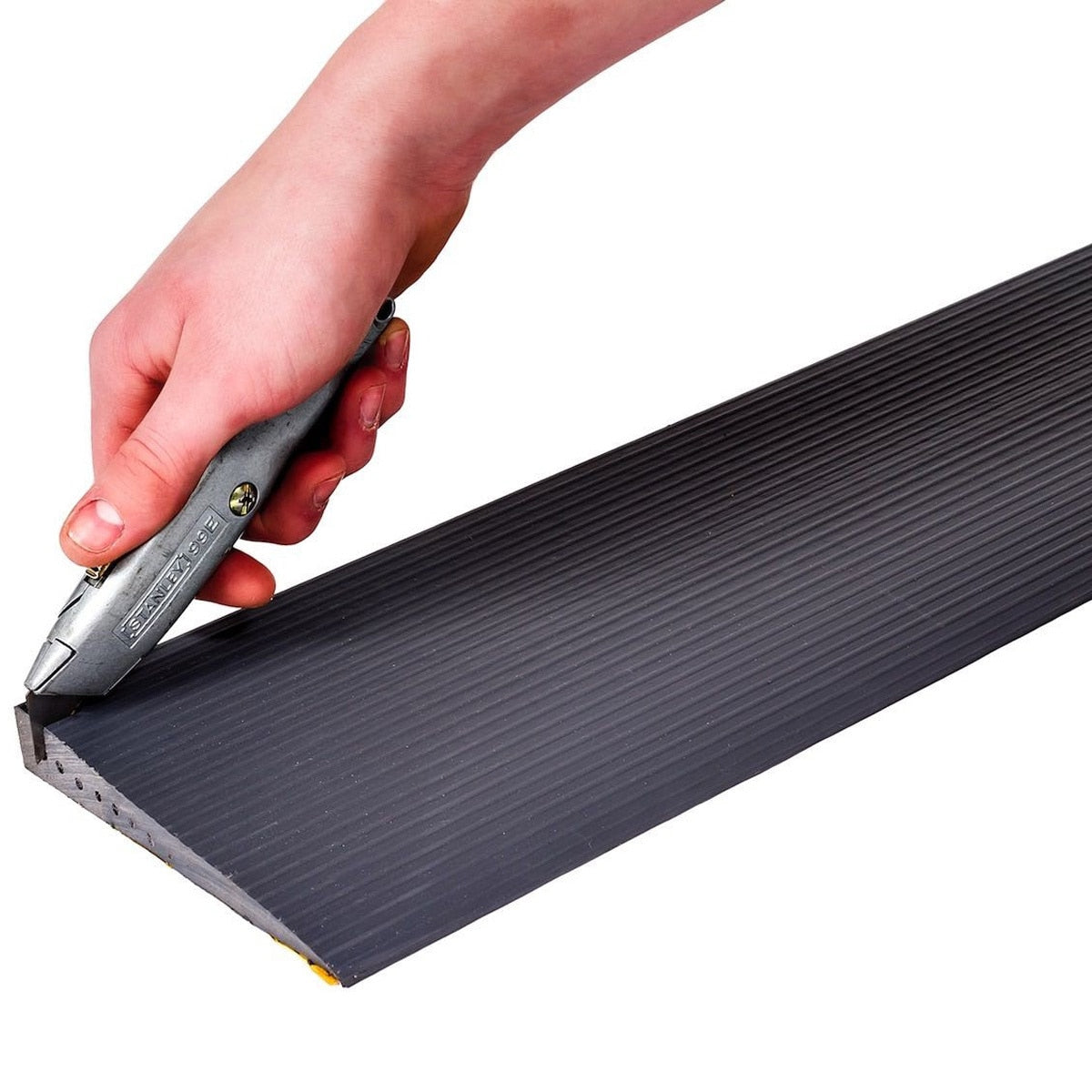

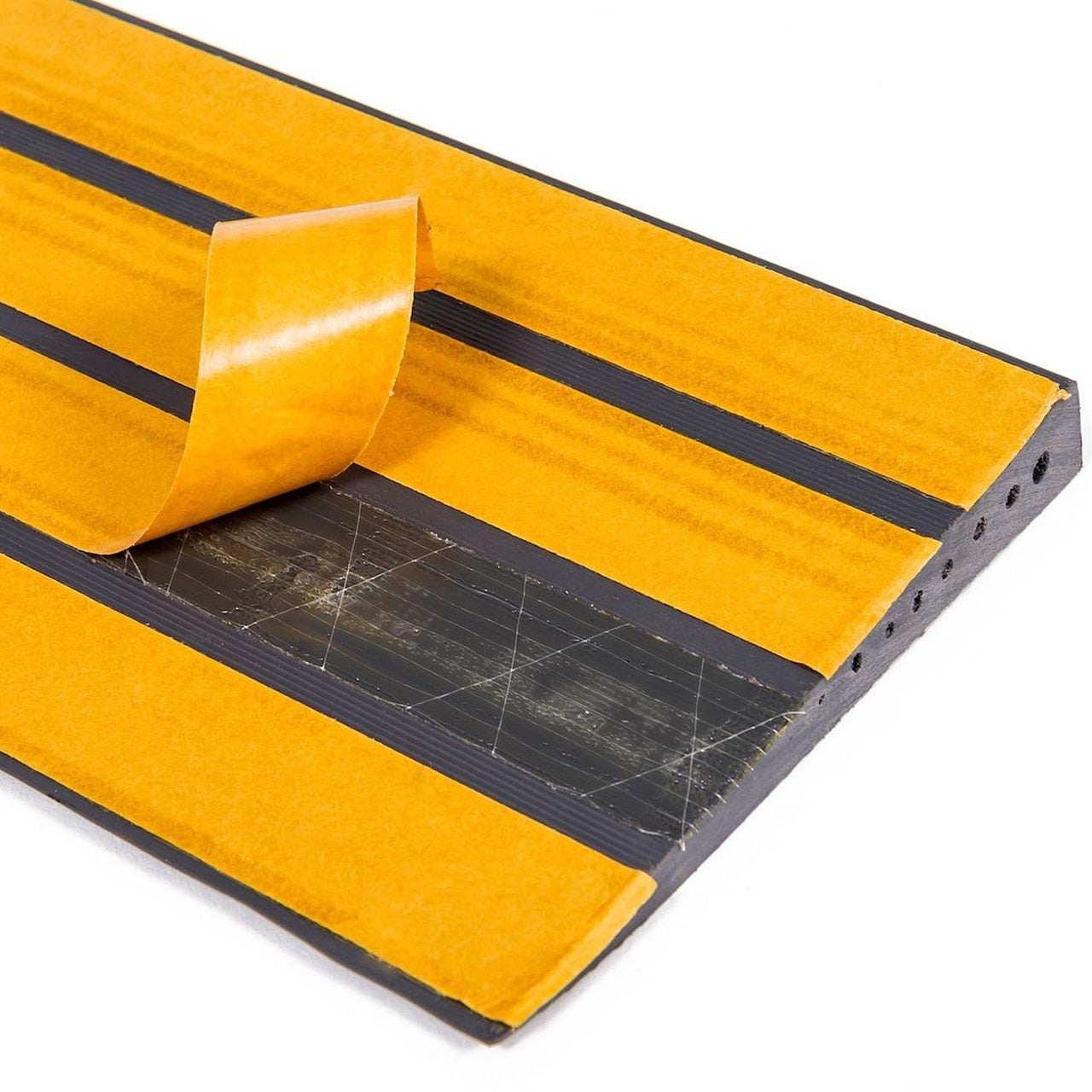

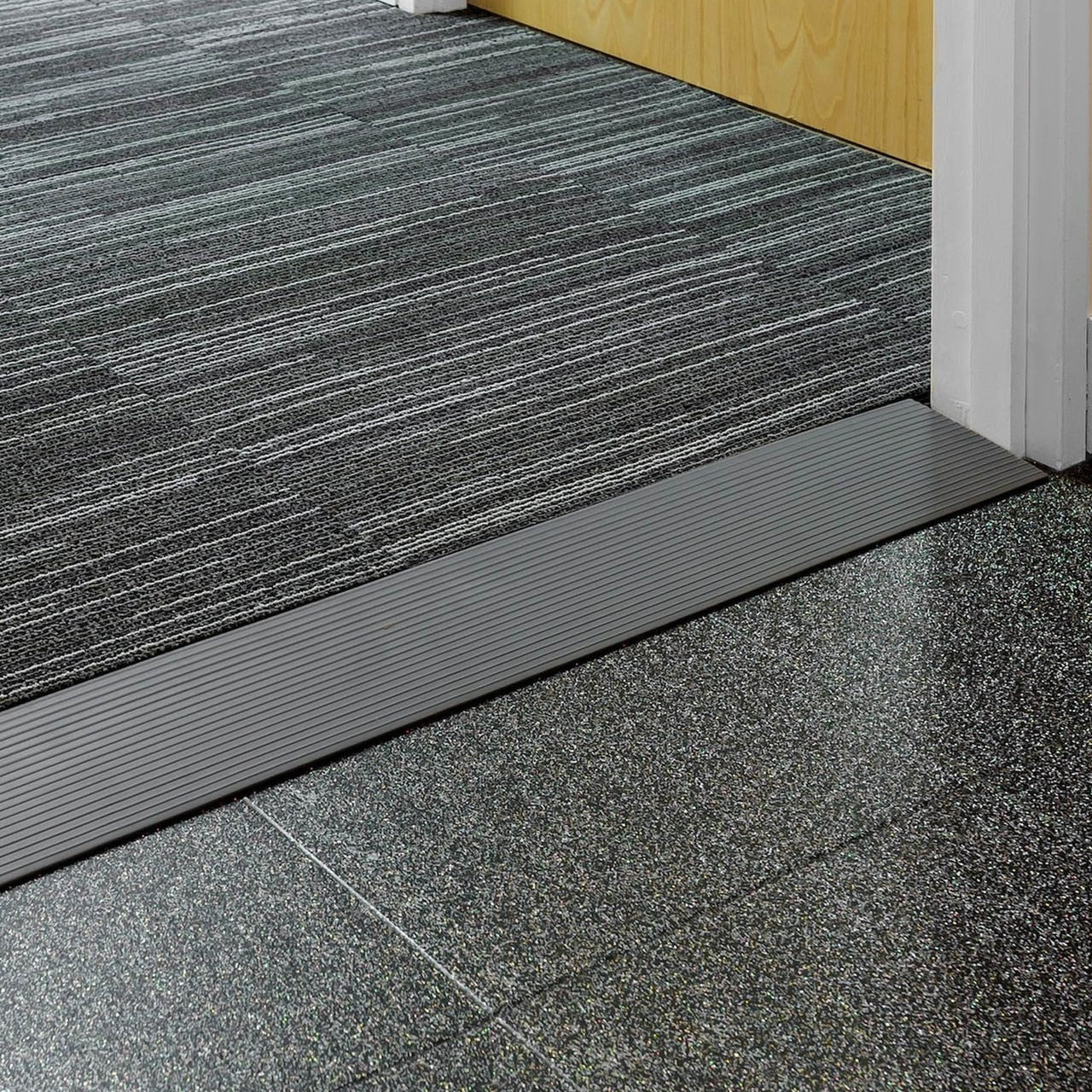

This versatile product provides and easy solution to small internal level changes and comes in three useful height options. It can easily be trimmed with a stanley knife and is available with or without self-adhesive backing.
£50.99
£50.99

With VAT Relief

    This versatile product provides and easy solution to small internal level changes and comes in three useful height options. It can easily be trimmed with a stanley knife and is available with or without self-adhesive backing.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft) 200cm (6ft 8") 300cm (10ft)
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)

Doorline Neatslope Size Guide

Code Height Length Width Capacity
kg (st)
Weight
kg (lbs)
Self Adhesive
y/n
DNS6 0.6cm (0.25ins) 6cm (2.4ins) 90cm (35.4ins) 300 (47) 0.3 (0.7) N
DNS6A 0.6cm (0.25ins) 6cm (2.4ins) 90cm (35.4ins) 300 (47) 0.3 (0.7) Y
DNS10 1cm (0.4ins) 10cm (3.9ins) 90cm (35.4ins) 300 (47) 0.75 (1.7) N
DNS10A 1cm (0.4ins) 10cm (3.9ins) 90cm (35.4ins) 300 (47) 0.75 (1.7) Y
DNS16 1.6cm (0.6ins) 15cm (5.9ins) 90cm (35.4ins) 300 (47) 1 (2.2) N
DNS16A 1.6cm (0.6ins) 15cm (5.9ins) 90cm (35.4ins) 300 (47) 1 (2.2) Y

Downloads

pdf iconDownload the ramp assessment guide here
