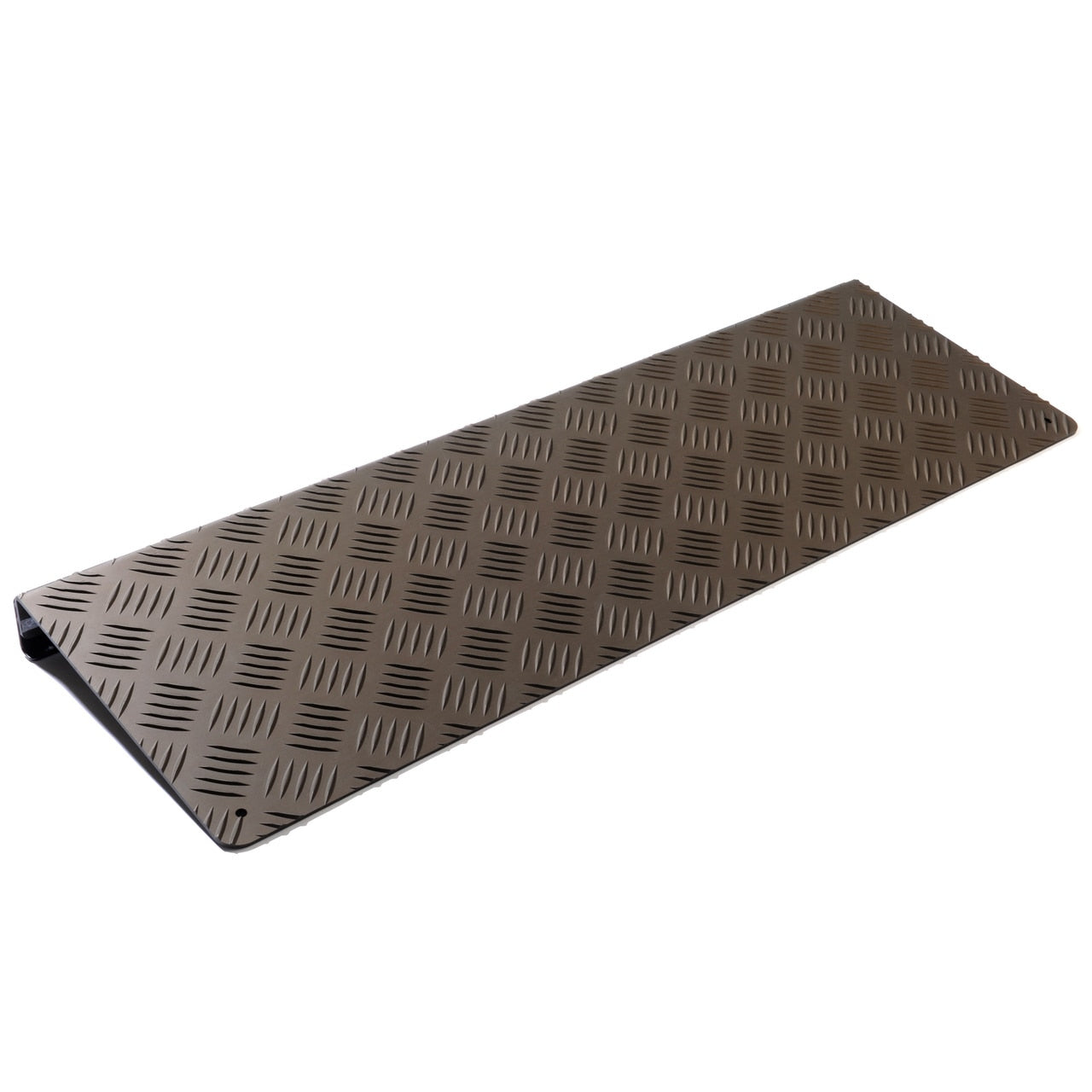

Doorline VariWedge Adjustable Threshold Ramp

Doorline VariWedge Adjustable Threshold Ramp

SKU: GLEBE2016ENABLEdvw1

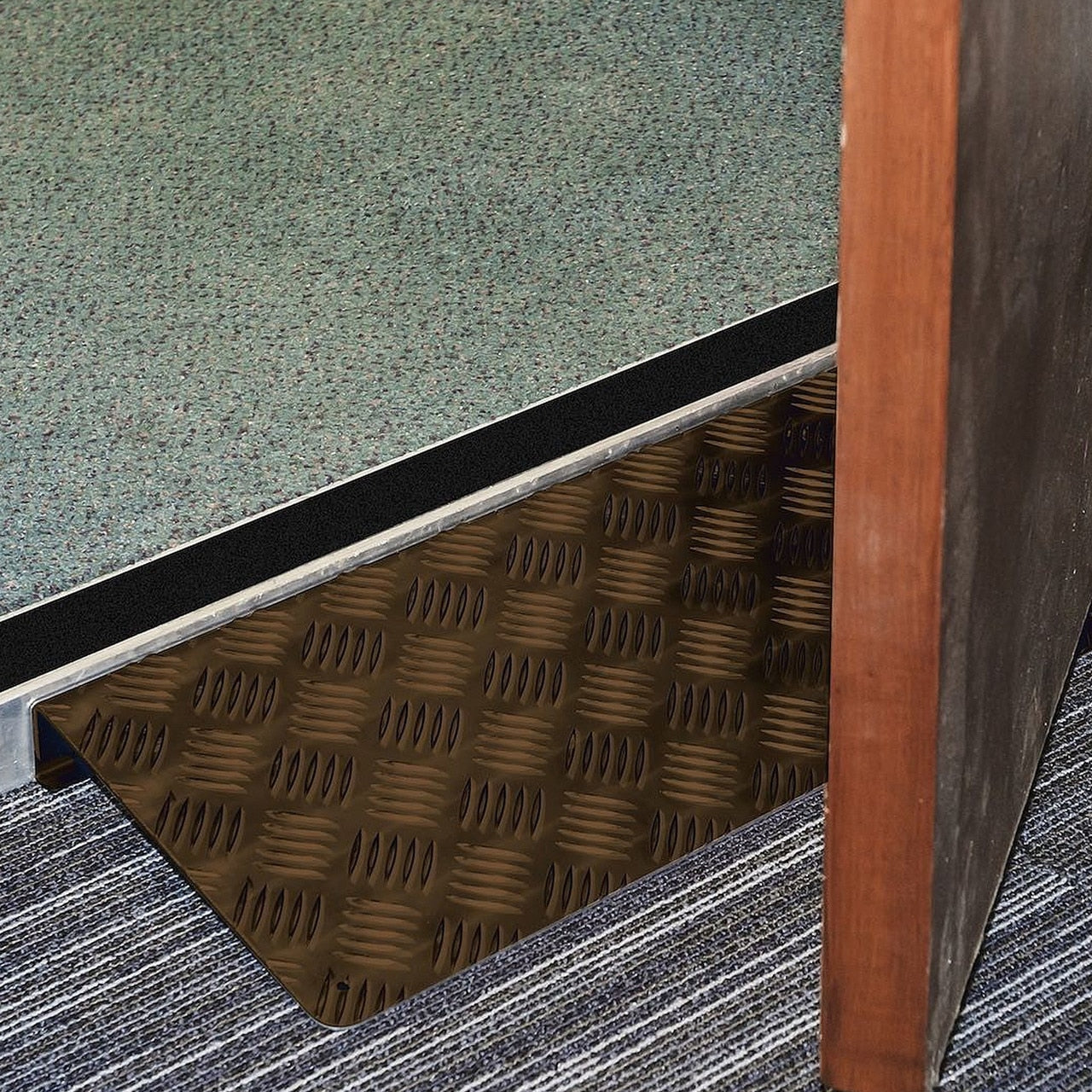

This adjustable wedge ramp will overcome almost any threshold! Leave in place for ultimate ease of use. 3 sizes: Small, Medium and Large.
£139.99
£139.99

With VAT Relief

    This adjustable wedge ramp will overcome almost any threshold! Leave in place for ultimate ease of use. 3 sizes: Small, Medium and Large.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft) 200cm (6ft 8") 300cm (10ft)
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)

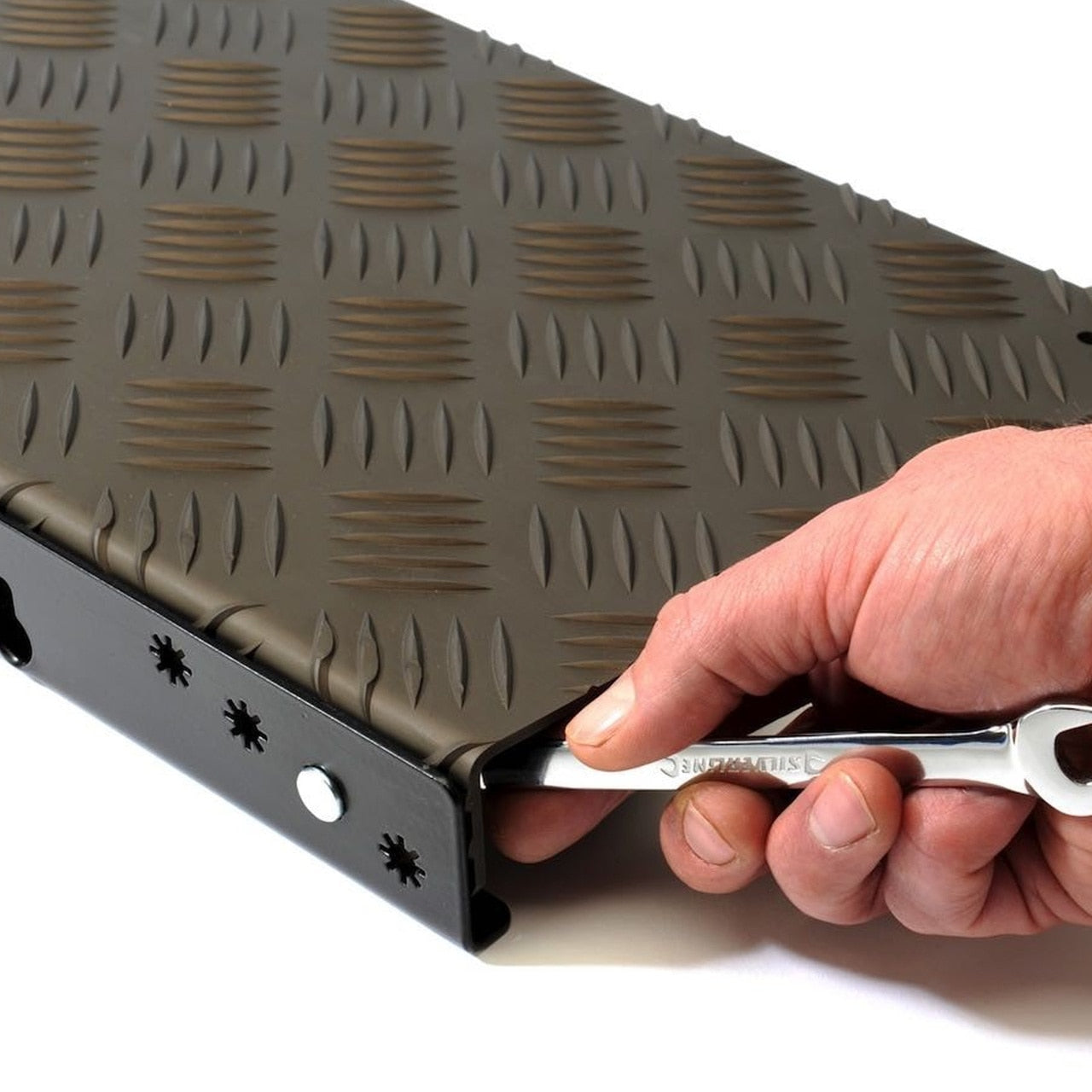

Fully adjustable in less than a minute (spanner supplied in kit)
Extremely durable designer-finish to suit any internal decor
Can be fixed in place for maximum stability
Remove and readjust for re-use elsewhere
Can be fixed in place for maximum stability
Rubber strip to grip and protect floor
Patent pending. Registered design.

Doorline Variwedge Size Guide

Code Min height Max
Height
Length Width Capacity
kg (st)
DVWS 2cm (0.8ins) 3cm (1.2ins) 15cm (5.9ins) 74cm
(29.1ins)
300
(47)
DVWM 3.5cm (1.4ins) 5.5cm (2.2ins) 25cm (9.8ins) 74cm
(29.1ins)
300
(47)
DVWL 6cm (2.4ins) 10cm (3.9ins) 50cm
(19.7ins)
74cm
(29.1ins)
300
(47)

Downloads

pdf iconDownload the ramp assessment guide here
