Permaramp Outdoor Threshold-Fixing Access Ramp

Permaramp Outdoor Threshold-Fixing Access Ramp

SKU: GLEBE2012AMAUK3483

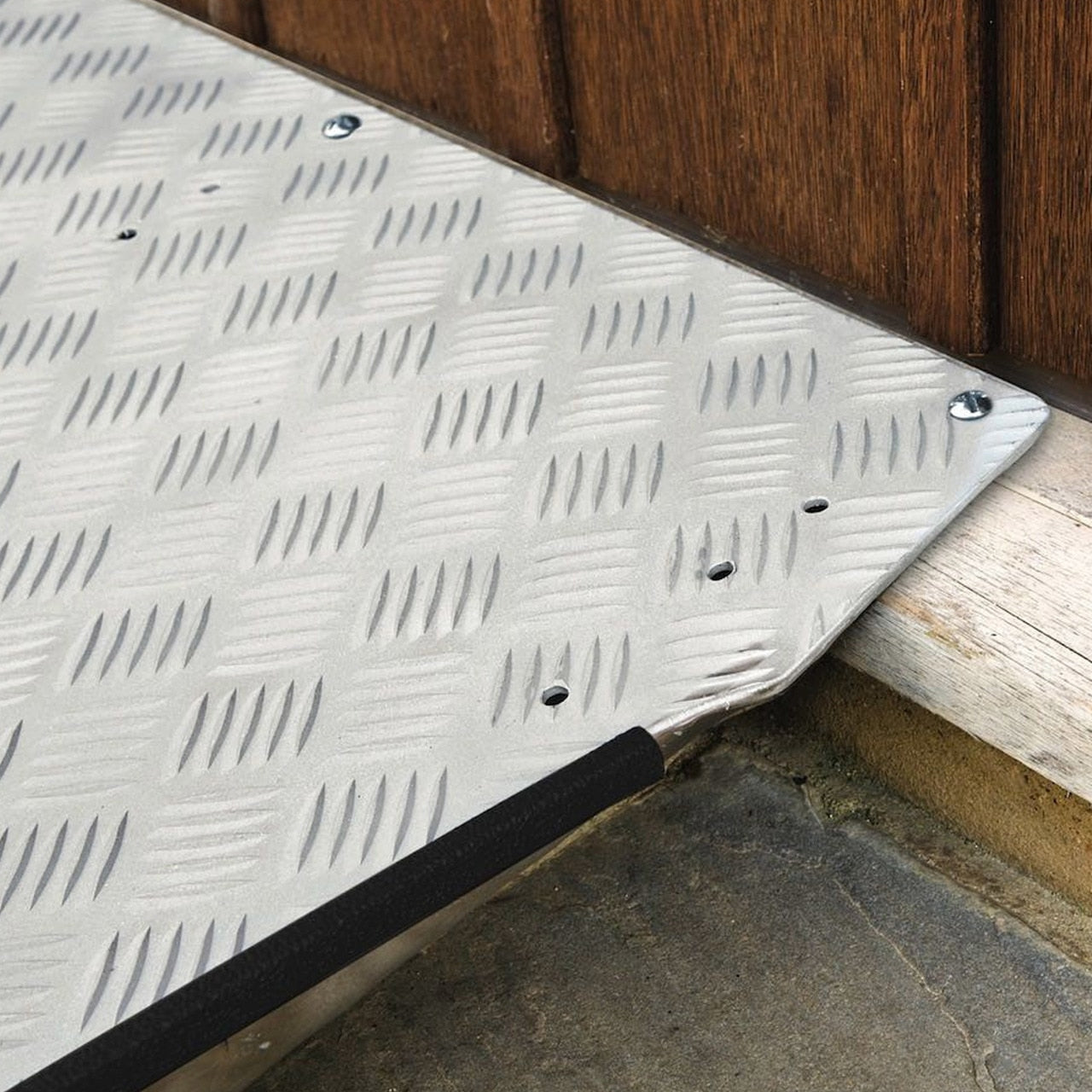

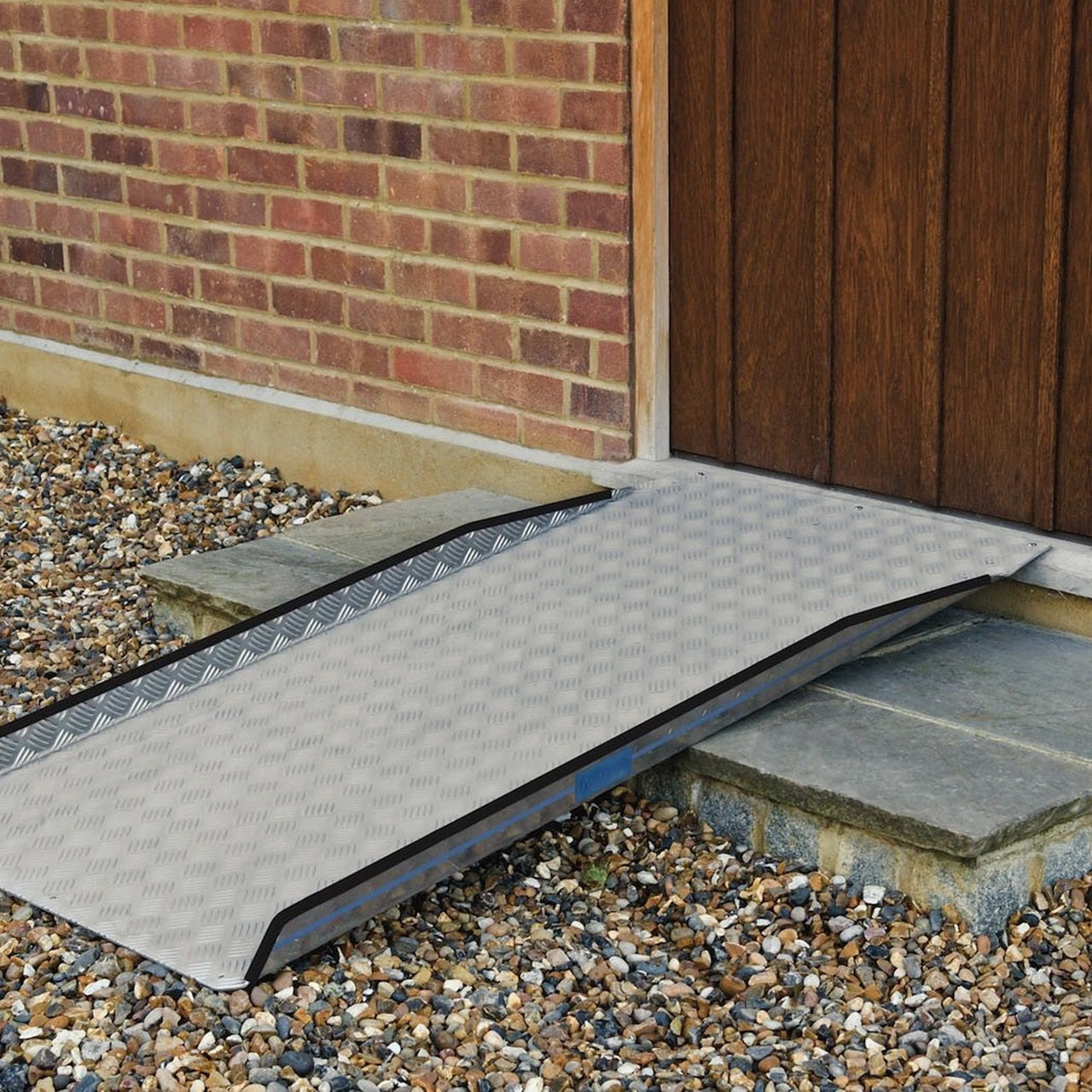

These excellent installed type, relocatable ramps, provide unmatched value and weight capacity. Fixing holes at both ends allow the ramp to be permanently drilled into place if required.
£370.99
£370.99

With VAT Relief

    These excellent installed type, relocatable ramps, provide unmatched value and weight capacity. Fixing holes at both ends allow the ramp to be permanently drilled into place if required.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6" 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft) 200cm (6ft 8") 300cm (10ft)
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)
Unique "gripdeck" surface for sustained outside use
Excellent for wooden door thresholds
Contrasting colour safety edge strips increase visibility
Fixing options at top and bottom for secure location

PermaRamp Original Size Guide

Code Length Width Capacity kg (st) Weight kg (lbs)
PO9 90cm (3ft) 76cm (30ins) 400 (63) 8.5 (19)
PO12 120cm (4ft) 76cm (30ins) 400 (63) 12 (26)
PO15 150cm (5ft) 76cm (30ins) 400 (63) 15 (33)
PO18 180cm (6ft) 76cm (30ins) 400 (63) 18.5 (41)
PO21 210cm (7ft) 76cm (30ins) 350 (55) 22 (49)
PO24 240cm (8ft) 76cm (30ins) 300 (47) 25 (55)

Downloads

Download the ramp assessment guide here

Specifications
