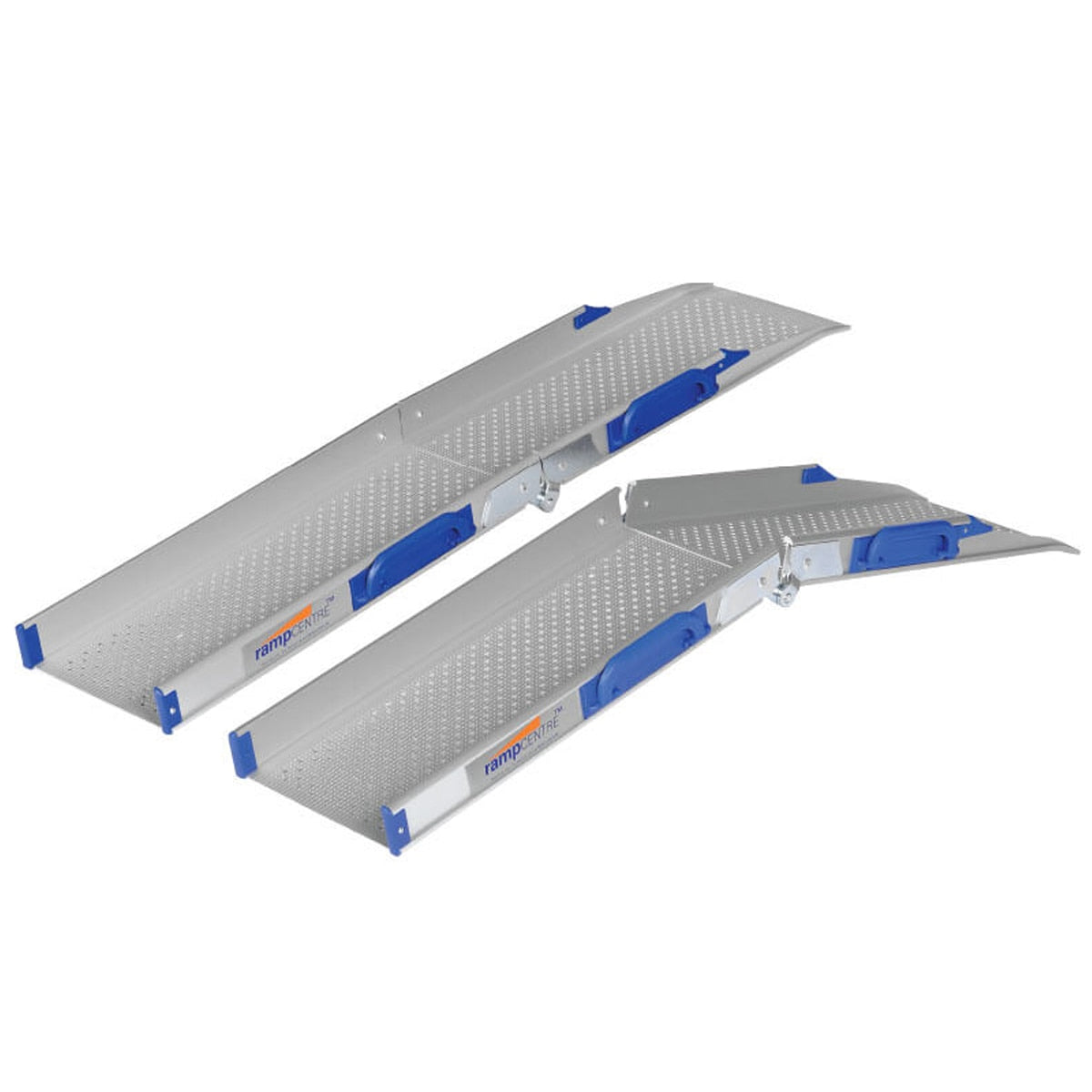

Ultralight Folding Lightweight Portable Channel Ramps

Ultralight Folding Portable Channel Ramps

SKU: EnableAulFcr1
Choose from a range of 3 sizes for a quick and easy to deploy problem solver.
£444.99
£444.99

With VAT Relief

    Choose from a range of 3 sizes for a quick and easy to deploy problem solver.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft) 200cm (6ft 8") 300cm (10ft)
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)
Low kerbs and long bevel sides greatly increase clearance for scooters & power chairs

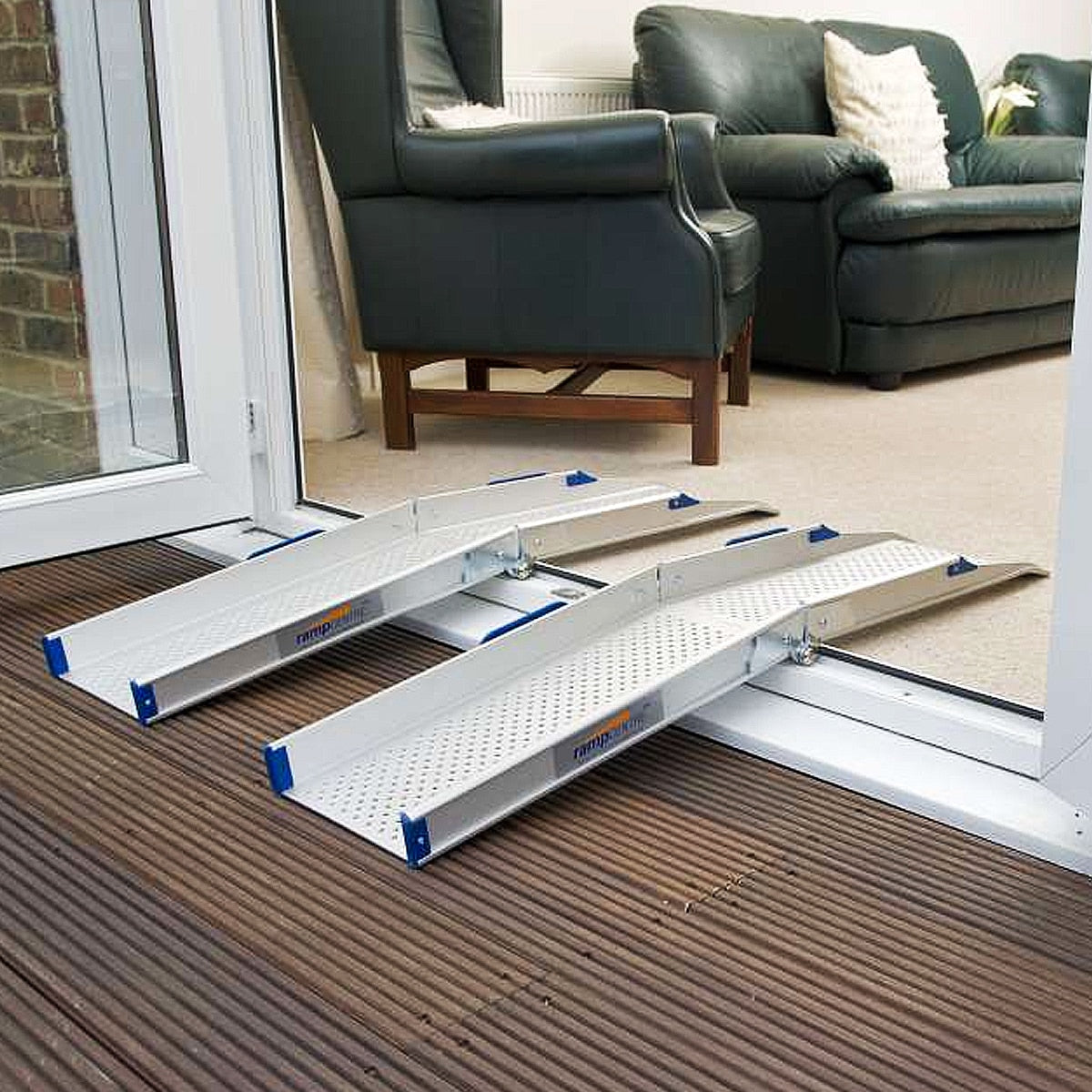

Can be used to bridge thresholds

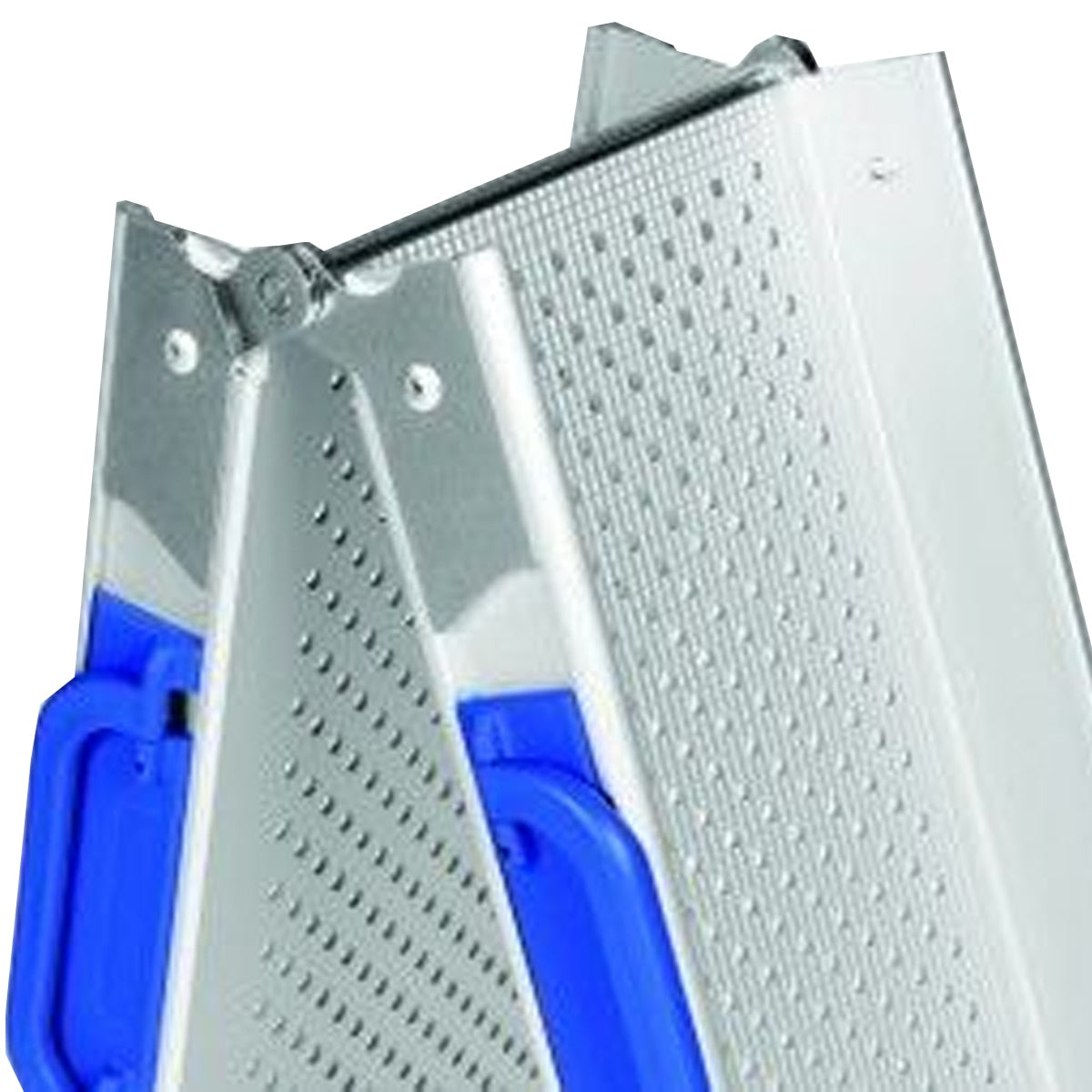

Ramp folds in half for compact storage
Great for those out and about

Ultralight Rigid Size Guide

Code
(pair)
Length Width
(internal
channel)
Capacity
pair
kg (st)
Weight
kg (lbs)
each half
Stored Dimensions
l x w x d
cm (inches)
PF11 110cm (3ft7") 21cm (8ins) 300 (47) 3.6 (8) 55 x 24.5 x 13 (22 x 10 x 5)
PF15 150cm (4ft11") 21cm (8ins) 300 (47) 4.6 (11) 77 x 24.5 x 13 (22 x 10 x 5)
PF20 200cm (6ft7") 21cm (8ins) 250 (39) 6 (14) 102 x 24.5 x 13 (22 x 10 x 5)

Downloads

pdf iconDownload the ramp assessment guide here

Specifications
