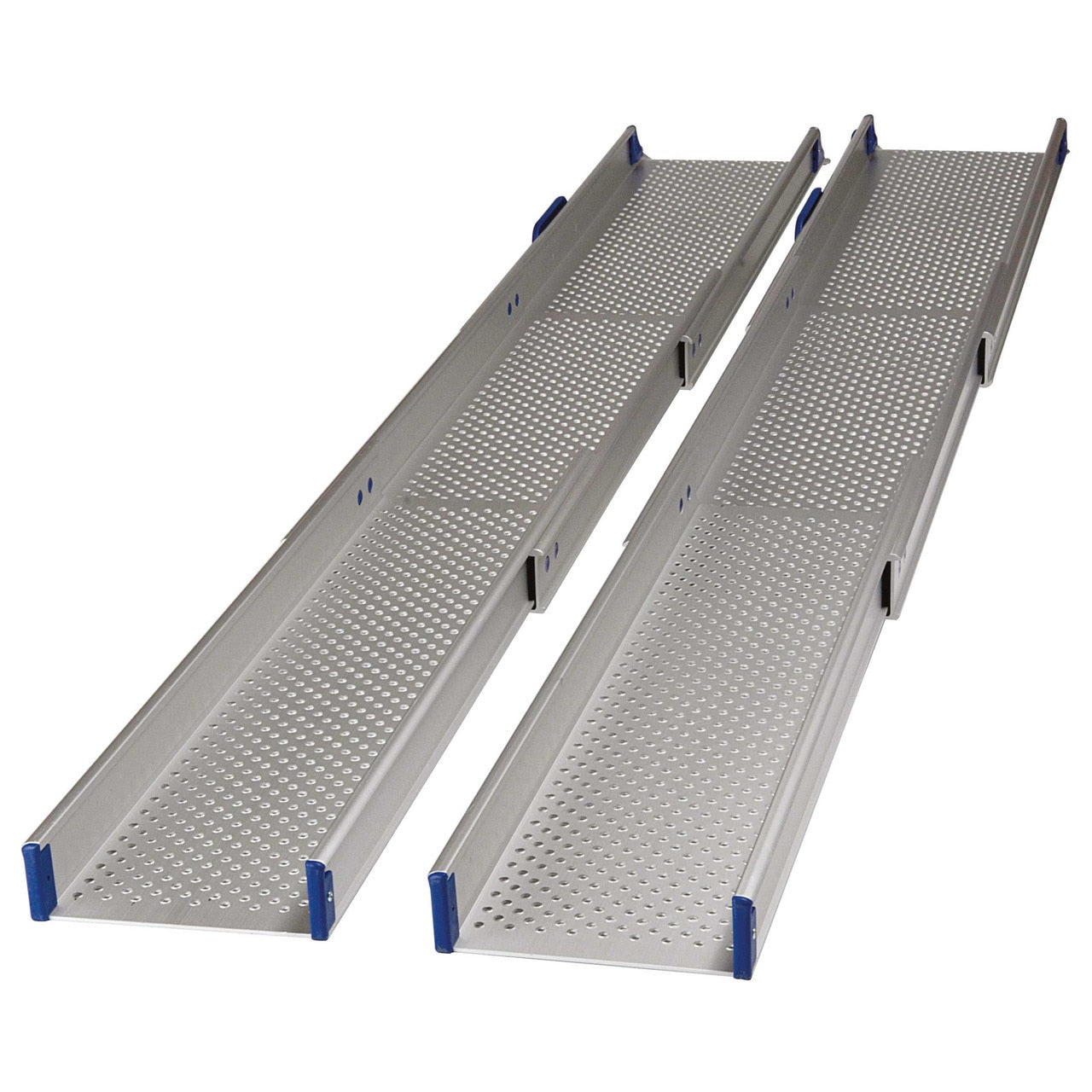

Ultralight Telescopic Lightweight Portable Channel Ramps

Ultralight Telescopic Portable Channel Ramps

SKU: GLEBE2012AMAUK3559
The most adjustable ramp in the range, these ramps extend up to nearly 3m, yet are extremely compact for easy storage in a vehicle. Available in 2 or 3 section versions to suit your storage requirements.
£411.99
£411.99

With VAT Relief

    The most adjustable ramp in the range, these ramps extend up to nearly 3m, yet are extremely compact for easy storage in a vehicle. Available in 2 or 3 section versions to suit your storage requirements.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft) 200cm (6ft 8") 300cm (10ft)
30cm (1") 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)
Versatile ramps that can be used at any length
Extremely compact storage

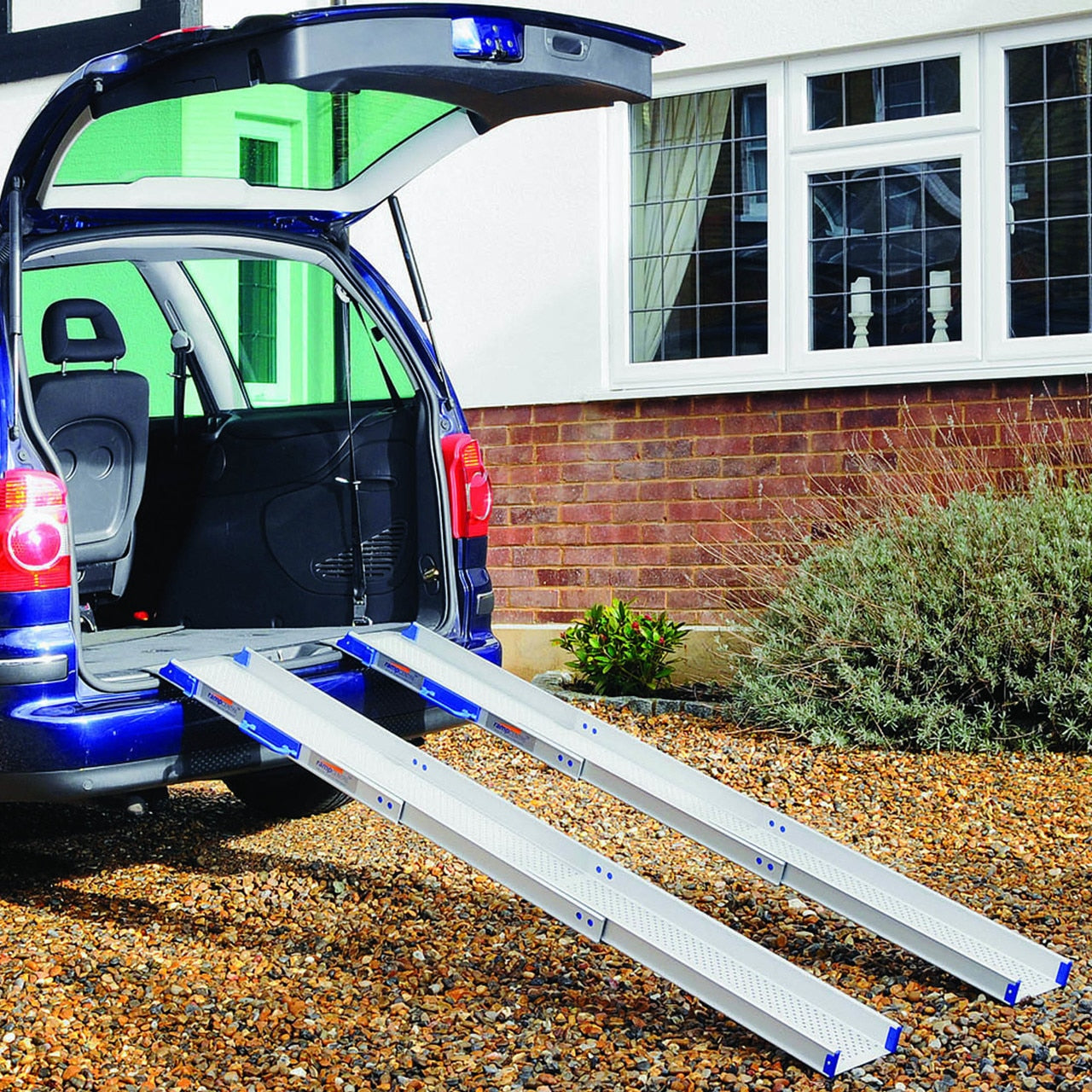

Ideal for vehicle access. Long version great for 4×4's

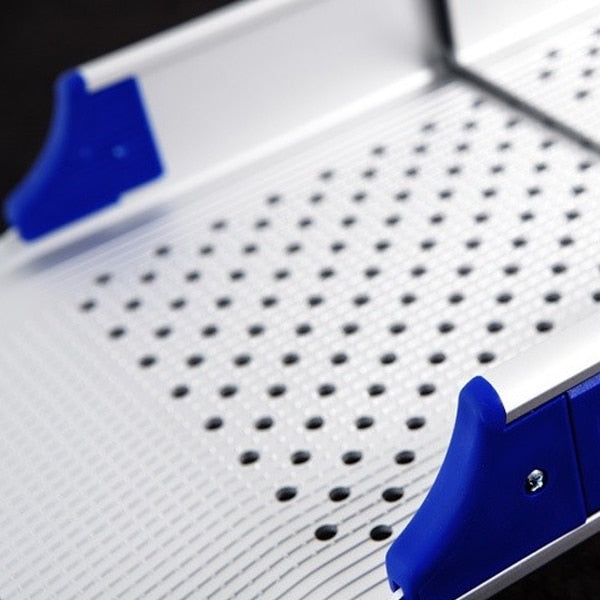

Uniquely high capacity and generous channel widths

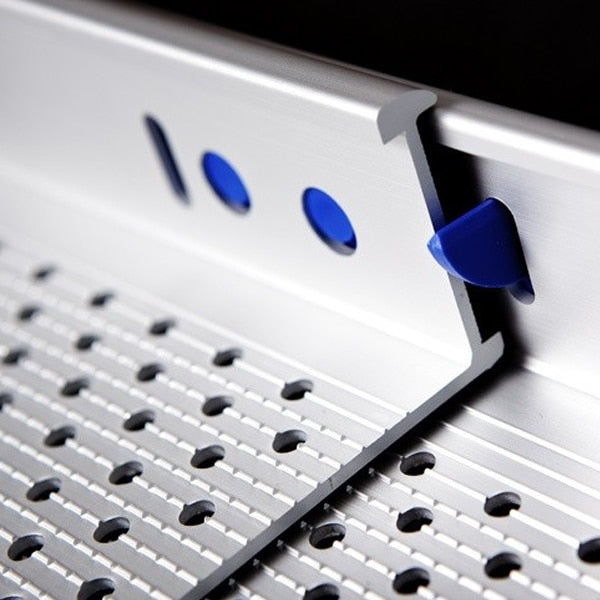

Silent telescopic mechanism with strong safety clip to prevent opening when stored.

Ultralight Telescopic Size Guide

Code
(pair)
Length Max Length Min Width
(internal
channel)
Capacity
pair
kg (st)
Weight
kg (lbs)
each half
Stored Dimensions
l x w x d
cm (inches)
PT12-2 120cm
(3ft 11")
75cm
(2ft 5")
19cm (8ins) 400 (63) 3.6 (8) 75 x 24.5 x 6 (29 x 10 x 2)
PT20-2 202cm
(6ft 8")
117cm
(3ft 10")
19cm (8ins) 300 (47) 5.8 (13 ) 117 x 24.5 x 6 (46 x 10 x 2)
PT20-3 199cm
(6ft 6")
87cm
(2ft 10")
18cm (7ins) 300 (47) 6.1 (14) 87 x 24.5 x 7 (31 x 10 x 3)
PT29-3 288cm
(9ft 5")
117cm
(3ft 10")
18cm (7ins) 250 (39) 8.2 (18) 117 x 24.5 x 7 (46 x 9 x 3)

Downloads

pdf iconDownload the ramp assessment guide here
