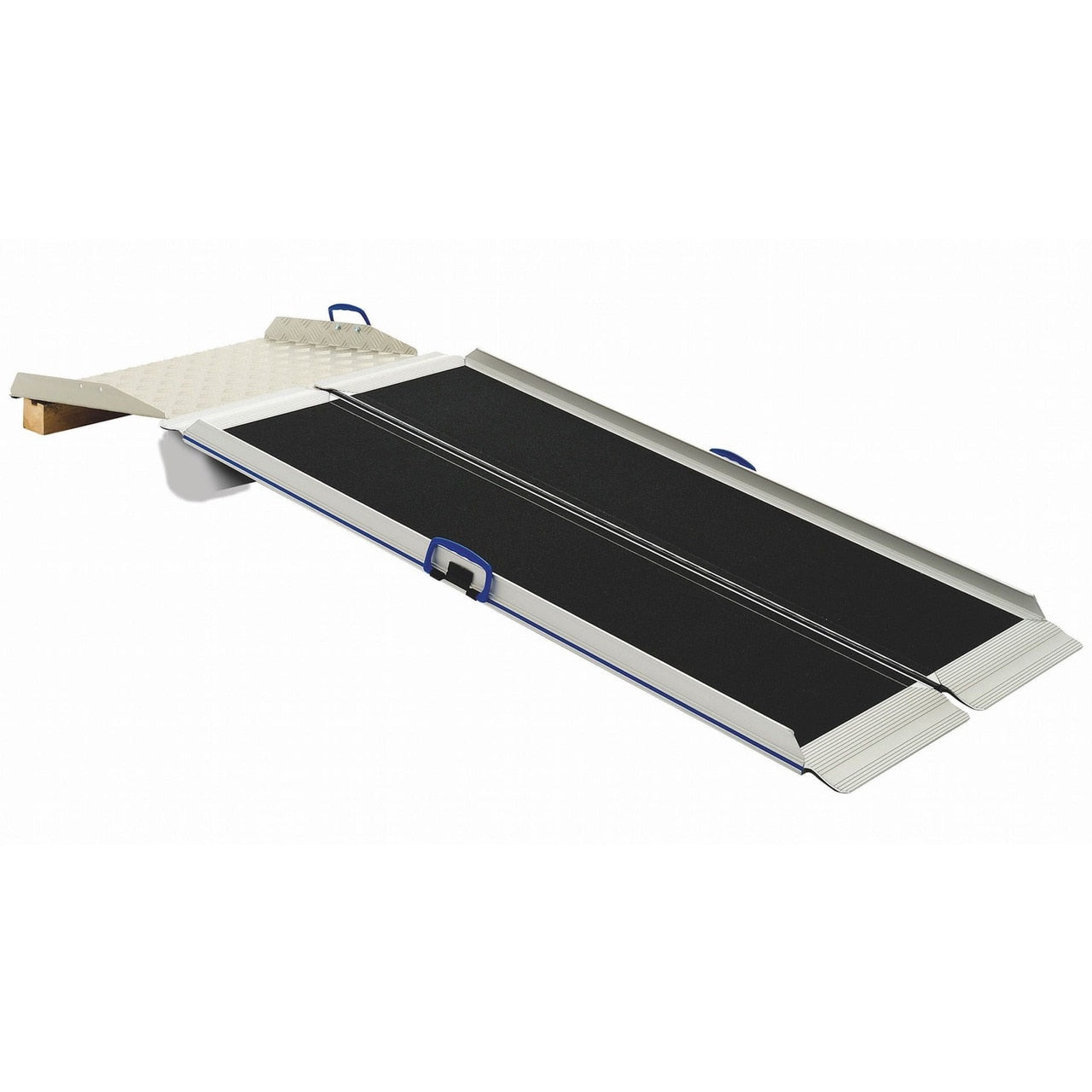

Up and Over Ramp Kit to bridge thresholds

The Up and Over Ramp Kit - to bridge thresholds

SKU: GLEBE2012AMAUK3493
Up and over ramp kits combine the well proven Aerolight-Xtra with the innovative Doorline Multi (DM5). This package provides everything needed for access up to, and over the threshold.
£554.99
£554.99

With VAT Relief

    Up and over ramp kits combine the well proven Aerolight-Xtra with the innovative Doorline Multi (DM5). This package provides everything needed for access up to, and over the threshold.

Up & over ramp kits combine the well proven Aerolight-Xtra with the innovative Doorline Multi (DM5). This package provides everything needed for access up to, and over the threshold.

Finding The Correct Gradient

1:6 (10˚) Acceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚) A good balance between gradient and space use, suited for events etc.
1:12 (5˚) Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚) Sometimes required by social services/local authorities for independent access.

Finding The Correct Length

Step height /
level difference (up to)
Length at 1:6 Length at 1:8 Length at 1:12
10cm (4") 60cm (2ft) 80cm (2ft 8") 120cm (4ft)
15cm (6") 90cm (3ft) 120cm (4ft) 180cm (6ft)
20cm (8") 120cm (4ft) 160cm (5ft 4") 240cm (8ft)
25cm ( 10") 150cm (5ft) 200cm (6ft 8") 300cm (10ft)
30cm (1ft) 180cm (6ft) 240cm (8ft) 360cm (12ft)
45cm (1ft 6") 270cm (9ft) 360cm (12ft) 540cm (18ft)
60cm (2ft) 360cm (12ft) 480cm (16ft) 720cm (24ft)
Quick and easy deployment
Copes with many threshold types and heights
Portable and easy to store
Order as a complete kit to save any hassle
Saves £'s by buying as a kit

RampKit UpandOver Size Guide

Code Includes External
Ramp Length
Max height
at 1:8
Max recommended
Internal
Threshold Height
Capacity
kg (st)
UO12 1 x DM5, 1 x AX12 120cm (4ft) 15cm (6ins) 10cm (4ins) 300 (47)
UO15 1 x DM5, 1 x AX15 150cm (5ft) 19cm (7.5ins) 10cm (4ins) 300 (47)
UO18 1 x DM5, 1 x AX18 180cm (6ft) 23cm (9ins) 10cm (4ins) 300 (47)
UO21 1 x DM5, 1 x AX21 210cm (7ft) 26cm (10ins) 10cm (4ins) 300 (47)
UO24 1 x DM5, 1 x AX24 240cm (8ft) 30cm (11.8ins) 10cm (4ins) 250 (39)

Downloads

Download the ramp assessment guide here
