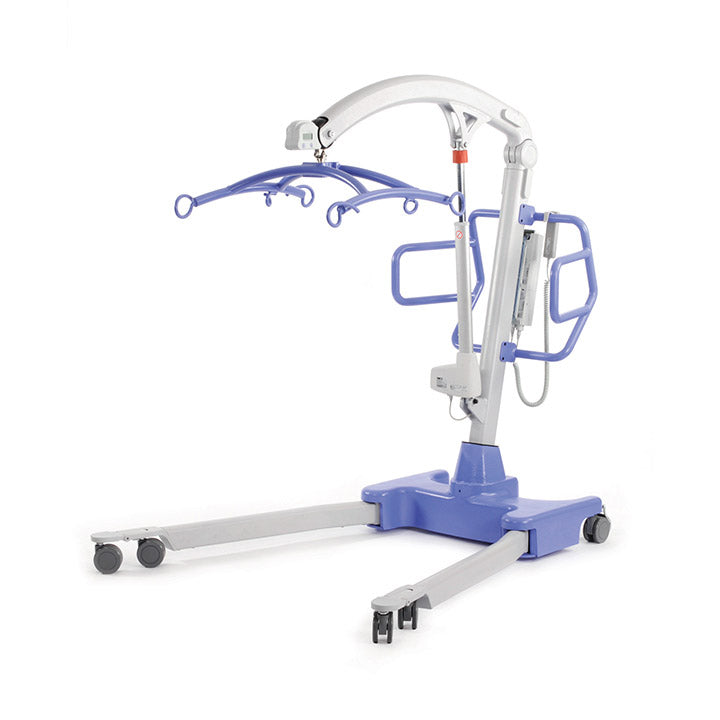

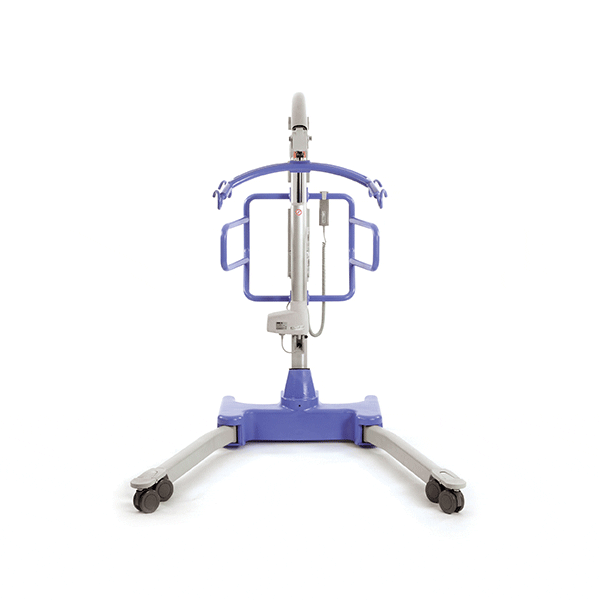

Oxford Calibre Bariatric Mobile Hoist

New Customer Offer: Save 5% using code NEWGLEBE5 at checkout.

The Oxford Calibre is an ergonomically designed patient lift for the safe lifting of bariatric patients. Sturdy and robust, yet incredibly versatile, the Calibre has an impressive safe working load of 385kg / 60st and meets the unique demands of bariatric care in today's modern healthcare environment.


If you order an Oxford hoist online, it will arrive partially assembled. While it is relatively easy for someone able-bodied to complete assembly, ALL Oxford hoists that are electrically-operated now feature smart control boxes that require commissioning at the point of delivery for the hoist to accurately function and keep track of service due dates. Glebe therefore offers a full engineer set-up, commissioning and demonstration service anywhere in mainland UK, which is selectable as an option above at no extra charge. Standard delivery is also available, although not recommended unless you are an entitiy with the ability to commission these hoists.

Integrated Digital Weigh-Scale

The powered adjustable legs enable better access around armchairs, wheelchairs and other furniture. Adjustment is achieved by simply pressing the appropriate button on the hand control, eliminating the need for manual leg adjustment.

Powered Leg Positioning

In today's demanding care environment, large patients are becoming more of a challenge for conventional lifts. With a safe working load of 200kg/31st, the Elevate is able to cope with the vast majority of patient handling situations.

Twin Pivoted Front Castors

The Calibre's twin pivoted front castors aid manoeuvrability, particularly over uneven floor surfaces and room thresholds. Removable bump guards help protect the legs from accidental damage.

NEW: Oxford Smart Control Box Info

All Oxford hoists with electric lift feature this new control box as standard that records the exact amount of work completed by the actuator each and every time the lift is used, regardless of a patient€™s weight or lift height covered. It also accurately identifies service interval periods, total number of actuations and work completed, and also detects lift over-loads (exceeding safe working load), all from easy to use, on-board controls complete with a hoist battery level indicator.

Specialist range of slings

To compliment the Oxford Calibre, Oxford have developed a range of bariatric slings. Made from a triple skinned, breathable material, they are particularly suited to patients who may have to remain in the sling for extended periods. Available in five sizes, XL - 5XL.

The Calibre was designed with the five key principles of moving and handling in mind. This direct correlation ensures Oxford's lift designs are simple, safe and above all comfortable to use. This view is shared by our clinical consultant team, who have assisted us in conducting detailed usability surveys to ensure the Elevate meets the true needs of the patient, carer and the environment in which it operates:

  1. Get close to the load
  2. Use a wide stable base
  3. Ensure a comfortable firm grasp
  4. Keep spine close to neutral
  5. Make sure movement is smooth

A large 6-point cradle: Provides an extensive spatial area to assist with patient comfort and positioning.


Safe Working Load:850 Ibs /385 kgs
Max Overall Length:64.0 inches /1625 mm
Min Overall Length :67.0 inches /1700 mm
Max Overall Height :88.5 inches /2250 mm
Min Overall Height :62.5 inches /1590 mm
Max Height to Attach Point :76.0 inches /1930 mm
Min Height to Attach Point :29.8 inches /755 mm
Height at Max Reach :67.5 inches /1710 mm
Reach at Max Height :28.0 inches /710 mm
Reach at Min Height :26.0 inches /660 mm
Max Reach :37.0 inches /940 mm
Turning Radius :76.5 inches /1940 mm
Legs Open - Ext:55.3 inches /1400 mm
Legs Open - Int:49.0 inches /1245 mm
Legs Closed - Ext:33.3 inches /845 mm
Legs Closed - Int:26.8 inches /680 mm
Height of Legs :4.8 inches /115 mm
Ground Clearance :0.6 inches /15 mm
Front Twin Castors :4.0 inches /100 mm
Rear Braked Castors :4.0 inches /100 mm


pdf iconOxford Calibre Brochure


Mast, Base, BoomCradle:109 kgs
6-point Cradle :9 kgs
Power Pack :3 kgs
Total:112 kgs
